045801.6 Series

FUSE Nano 1206 size High i2t 1.6A

Catalog

FUSE Nano 1206 size High i2t 1.6A

Part	DC Cold Resistance	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - DC	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current Rating (Amps)	Package / Case	Voltage Rating - AC	Approval Agency	Response Time
LITTELFUSE 045801.6DR	0.092 Ohms	50 A	0.562	75 V	Board Mount (Cartridge Style Excluded)	-55 C	125 °C	Surface Mount	1.58 mm	3.18 mm	0.125 "	0.062 in	0.062 in	1.58 mm	1.6 A	1206 (3216 Metric)	48 V	cULus	Fast Blow

Catalog

FUSE Nano 1206 size High i2t 1.6A

Description

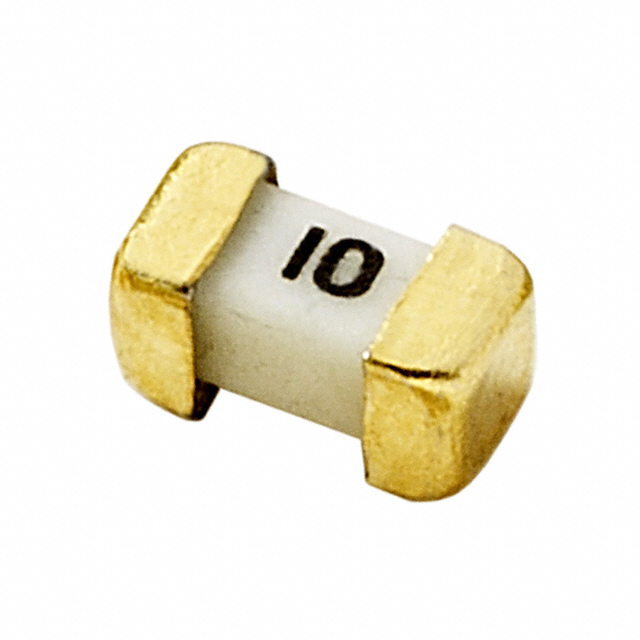

The 458 Series Nano2® Fuse is an ultra-small, square surface mount fuse designed to support a variety of space constrained overcurrent protection applications. Offering a 1206 size footprint, it is the smallest wire-in-air type surface mount fuse offered by Littelfuse.
