LD15P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

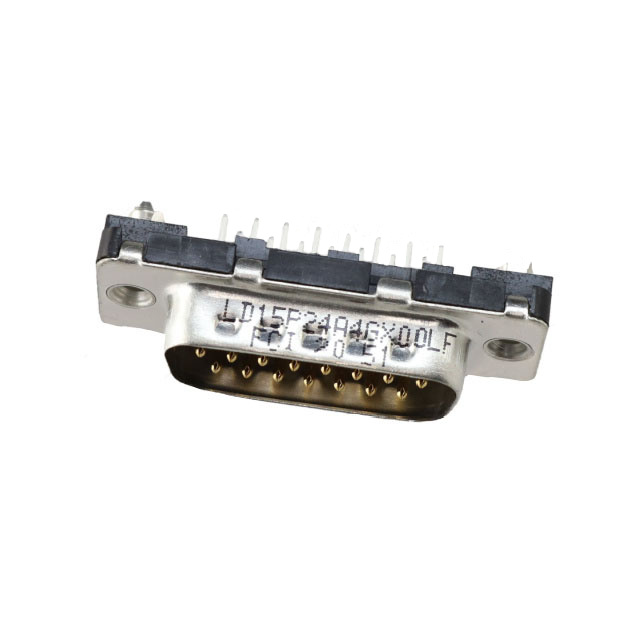

CONN D-SUB PLUG 15POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Number of Positions | Flange Feature | Flange Feature | Material Flammability Rating | Mounting Type | Connector Type | Contact Finish | Current Rating (Amps) | Termination | Contact Type | Contact Finish Thickness | Shell Material, Finish | Features | Connector Style | Number of Rows [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 250 V | Thermoplastic | -55 C | 105 ░C | Black | Copper Alloy | 15 | Housing/Shell | 4-40 | UL94 V-0 | Through Hole | Plug Male Pins | Gold | 5 A | Solder | Signal | Flash | Steel Tin-Nickel Plated | Board Lock Grounding Indents | D-Sub | 2 | 2 |
