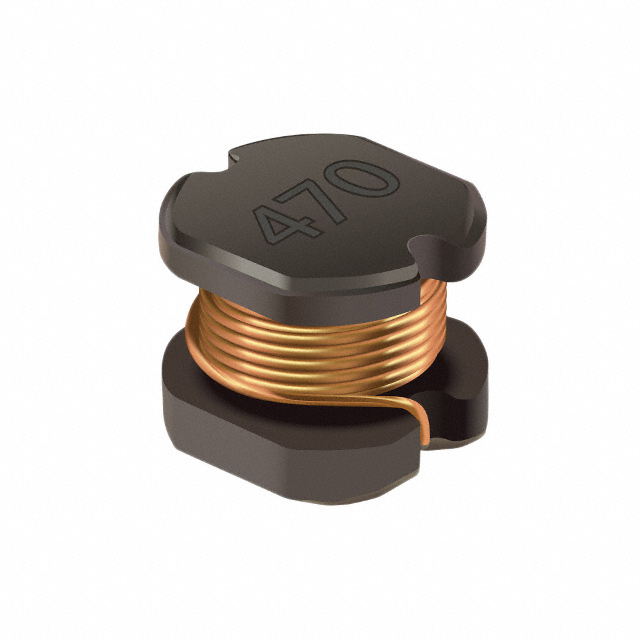

SDE0604A Series
Manufacturer: Bourns Inc.
Beta
⌘K
SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE0604A SERIES, 5.6 H, 20%, UNSHIELDED, 0.075 OHM, 3.2 A ROHS COMPLIANT: YES
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) | Material - Core | Current Rating (Amps) | Mounting Type | Tolerance | Inductance Frequency - Test | Inductance | Ratings | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Frequency - Self Resonant | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 3.2 A | Surface Mount | 20 % | 1 MHz | 5.6 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 41 MHz | 75 mOhm | 2.75 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
 Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 2.5 A | Surface Mount | 20 % | 1 MHz | 12 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 29 MHz | 120 mOhm | 1.85 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
 Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 3.6 A | Surface Mount | 20 % | 1 MHz | 3.9 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 44 MHz | 65 mOhm | 3.2 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
 Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 4 A | Surface Mount | 20 % | 1 MHz | 2.7 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 60 MHz | 55 mOhm | 3.8 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 3.8 A | Surface Mount | 20 % | 1 MHz | 3.3 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 50 MHz | 3.5 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | ||
Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 2.6 A | Surface Mount | 20 % | 1 MHz | 10 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 32 MHz | 2 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | 100 mOhm | |
 Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 1.55 A | Surface Mount | 20 % | 1 MHz | 33 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 17 MHz | 230 mOhm | 1.1 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 0.52 A | Surface Mount | 10 % | 1 kHz | 150 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 7 MHz | 1.1 Ohm | 520 mA | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |
Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 750 mA | Surface Mount | 10 % | 1 kHz | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 7.5 MHz | 0.6 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound | |||
Bourns Inc. | 0.189 " | 4.8 mm | Ferrite | 5.3 A | Surface Mount | 20 % | 1 MHz | 1.2 µH | AEC-Q200 | 5.8 mm | 0.205 " | 0.228 in | 5.2 mm | Nonstandard | 155 MHz | 20 mOhm | 6 A | Unshielded | 125 °C | -40 C | Drum Core Wirewound |
