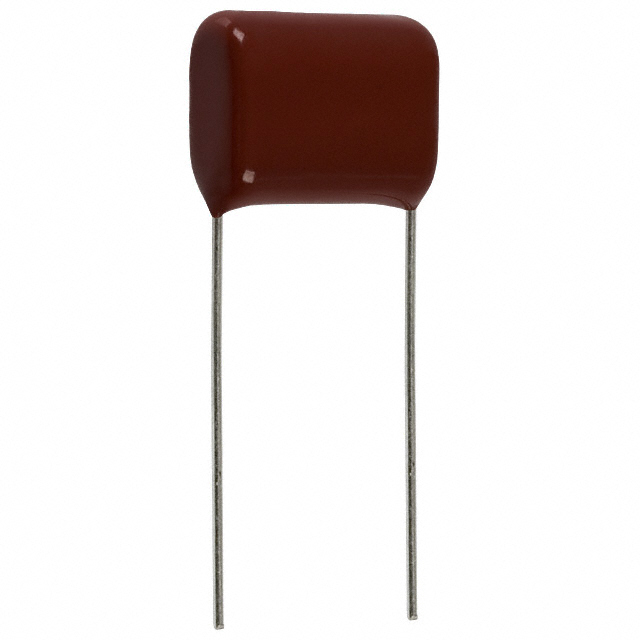

ECQ-E2275 Series

Manufacturer: Panasonic Electronic Components

Catalog

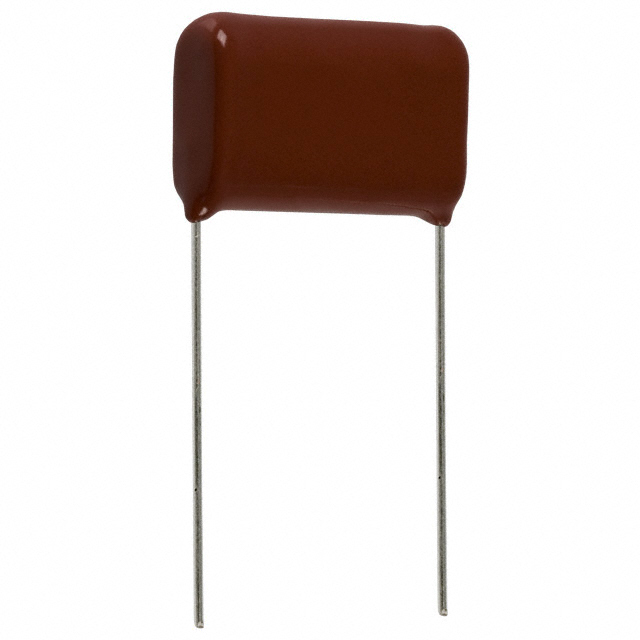

ECQE(F), MET POLYESTER FILM CAP RADIAL L ROHS COMPLIANT: YES

Part	Dielectric Material	Capacitance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Tolerance	Voltage Rating - DC	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Package / Case	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2275KFB	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	15 mm	0.591 in	10 %	250 V	Through Hole	1.024 in	9.4 mm	26 mm	0.37 in	0.866 in	22 mm	Radial	PC Pins
Panasonic Electronic Components ECQ-E2275JBB	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	10 mm	0.394 in	5 %	250 V	Through Hole	0.819 "	9.3 mm	20.8 mm	0.366 in			Radial	PC Pins	0.854 in	21.7 mm
Panasonic Electronic Components ECQ-E2275JFB	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	15 mm	0.591 in	5 %	250 V	Through Hole	1.024 in	9.4 mm	26 mm	0.37 in	0.866 in	22 mm	Radial	PC Pins
Panasonic Electronic Components ECQ-E2275RKB	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	17.5 mm	0.689 in	10 %	250 V	Through Hole	0.819 "	9.3 mm	20.8 mm	0.366 in			Radial	PC Pins	0.854 in	21.7 mm
Panasonic Electronic Components ECQ-E2275JB	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	17.5 mm	0.689 in	5 %	250 V	Through Hole	0.819 "	9.3 mm	20.8 mm	0.366 in			Radial	PC Pins			17.7 mm	0.697 in
Panasonic Electronic Components ECQ-E2275KFW	Polyester Metallized	2.7 µF	General Purpose	-40 C	105 ░C	15 mm	0.591 in	10 %	250 V	Through Hole	1.024 in	9.4 mm	26 mm	0.37 in	0.866 in	22 mm	Radial	PC Pins
