2354154 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PCI EXP FMALE 164POS 0.039

Part	Contact Type	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Material - Insulation	Features	Card Type	Contact Finish	Number of Rows	Mounting Type	Gender	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness

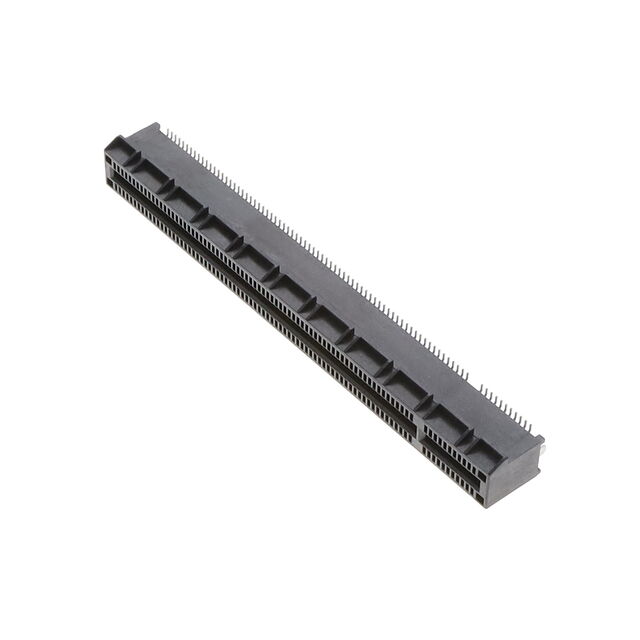

TE Connectivity Raychem Cable Protection 5-2354154-8	Cantilever	0.062 in	1.57 mm	0.039 in	1 mm	Solder	Copper Alloy	85 °C	-40 °C	Dual	Liquid Crystal Polymer (LCP)	Board Guide Locking Ramp Solder Retention	PCI Express™	Gold	2	Surface Mount	Female	164	Black	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 5-2354154-4	Cantilever	0.062 in	1.57 mm	0.039 in	1 mm	Solder	Copper Alloy	85 °C	-40 °C	Dual	Liquid Crystal Polymer (LCP)	Board Guide Locking Ramp Solder Retention	PCI Express™	Gold	2	Surface Mount	Female	164	Black	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 2-2354154-4	Cantilever	0.062 in	1.57 mm	0.039 in	1 mm	Solder	Copper Alloy	85 °C	-40 °C	Dual	Liquid Crystal Polymer (LCP)	Board Guide Locking Ramp Solder Retention	PCI Express™	Gold	2	Surface Mount	Female	164	Black	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 4-2354154-8	Cantilever	0.062 in	1.57 mm	0.039 in	1 mm	Solder	Copper Alloy	85 °C	-40 °C	Dual	Liquid Crystal Polymer (LCP)	Board Guide Locking Ramp Solder Retention	PCI Express™	Gold	2	Surface Mount	Female	164	Black	0.38 µm	15 µin
TE Connectivity Raychem Cable Protection 2354154-4	Cantilever	0.062 in	1.57 mm	0.039 in	1 mm	Solder	Copper Alloy	85 °C	-40 °C	Dual	Liquid Crystal Polymer (LCP)	Board Guide Locking Ramp Solder Retention	PCI Express™	Gold	2	Surface Mount	Female	164	Black			Flash
