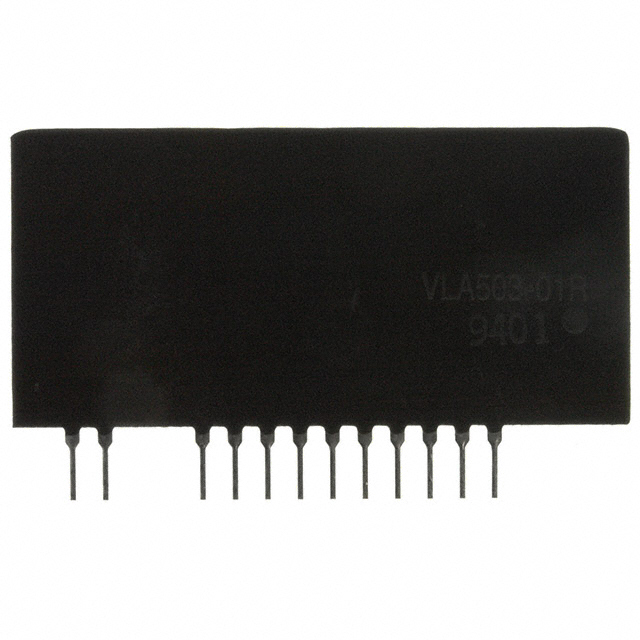

VLA503 Series
Manufacturer: Powerex Inc.
Beta
⌘K
IC GATE DRVR LOW-SIDE MODULE
| Part | Channel Type | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Drivers | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] | Rise / Fall Time (Typ) | Driven Configuration | Gate Type | Supplier Device Package | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Powerex Inc. | Single | Non-Inverting | -20 °C | 60 °C | 1 | 15 V | 14 V | 5 A | 5 A | 300 ns | Low-Side | IGBT | Module | 12-SIP | Through Hole |
