PV4F2 Series

Manufacturer: E-Switch

Catalog

SWITCH: VANDAL RESISTANT; POS: 2; DPDT; 2A/24VDC; IP65; ON-ON; RED

Part	Electrical Life	Mechanical Life	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Actuator Marking	Current Rating (Amps)	Switch Function	Illumination Type, Color	Mounting Type	Voltage Rating - DC	Circuit	Actuator Type	Termination Style	Color - Actuator/Cap
E-Switch PV4F2G0SS-311	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	1.8 VDC	No Marking	2 A	On-On	LED Red	Panel Mount Front	24 V	DPDT	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver

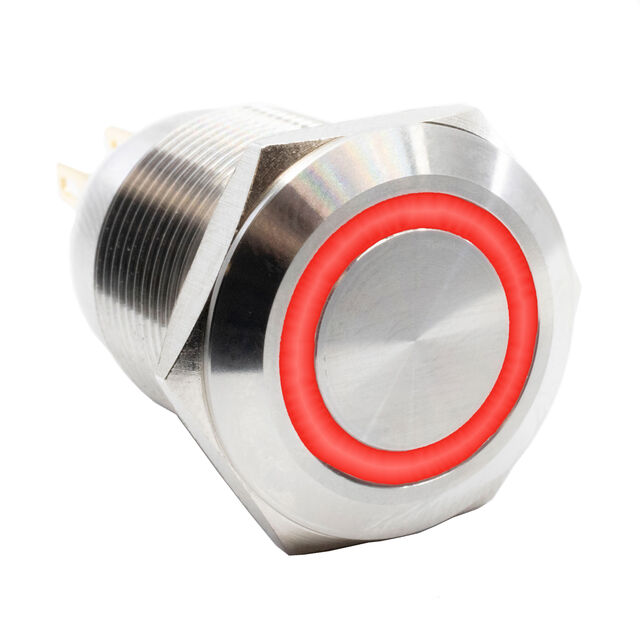

E-Switch PV4F2Y0SS-315	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	24 V	No Marking	2 A	Off-Mom On-Mom	LED Red	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
E-Switch PV4F2Y0SS-331	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	2.8 VDC	No Marking	2 A	Off-Mom On-Mom	Green LED	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
E-Switch PV4F2Y011-331	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	2.8 VDC	No Marking	2 A	Off-Mom On-Mom	Green LED	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Black
E-Switch PV4F2B011-324	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	12 VDC	No Marking	2 A	On-Mom	LED Orange	Panel Mount Front	24 V	SPDT	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Black

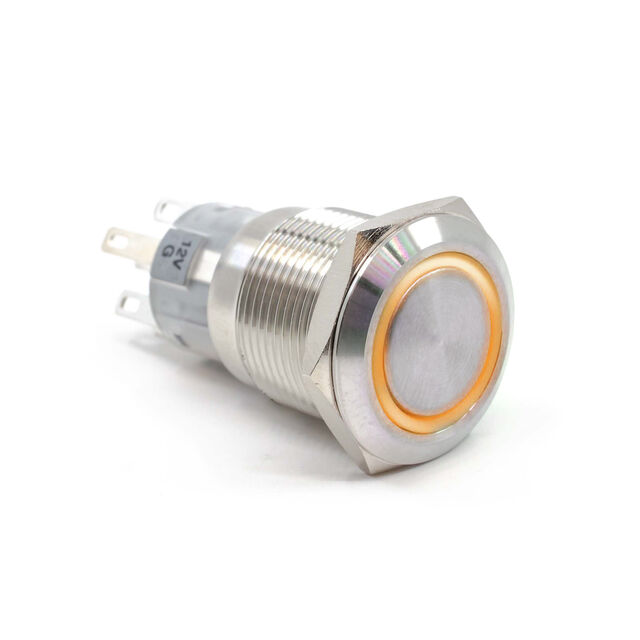

E-Switch PV4F2G0SS-325	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	24 V	No Marking	2 A	On-On	LED Orange	Panel Mount Front	24 V	DPDT	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
E-Switch PV4F2Y0SS-304	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	12 VDC	No Marking	2 A	Off-Mom On-Mom	LED White	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
E-Switch PV4F2H0SS-344	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	12 VDC	No Marking	2 A	On-Mom	Blue LED	Panel Mount Front	24 V	DPDT	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
E-Switch PV4F2Y01S-343	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	6 VDC	No Marking	2 A	Off-Mom On-Mom	Blue LED	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver

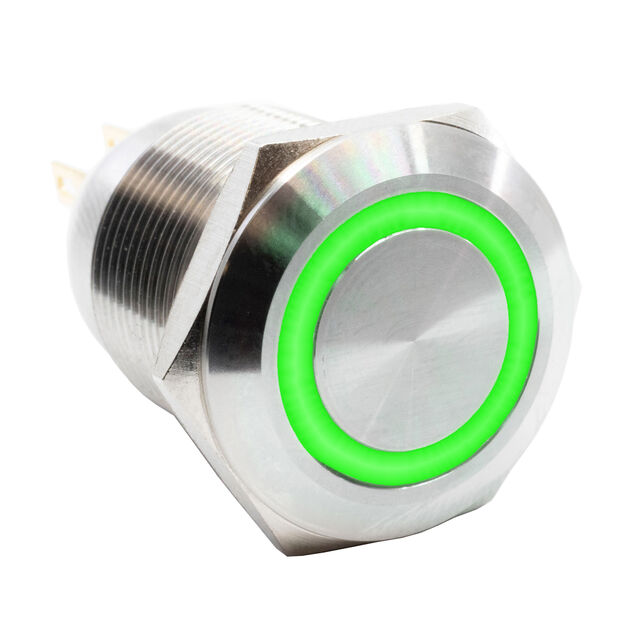

E-Switch PV4F2Y0SS-335	50000 Cycles	1000000 Cycles	IP65 - Dust Tight Water Resistant	55 °C	-20 ░C	Anti-Vandal Illuminated	19 mm	24 V	No Marking	2 A	Off-Mom On-Mom	Green LED	Panel Mount Front	24 V	DPST-NO/NC	Button Flush Round	Solder Quick Connect - 0.110" (2.8mm)	Silver
