BCX55-10T

BCX55-10T Series

60 V, 1 A NPN power bipolar transistors

Manufacturer: Freescale Semiconductor - NXP

Catalog

60 V, 1 A NPN power bipolar transistors

Description

AI

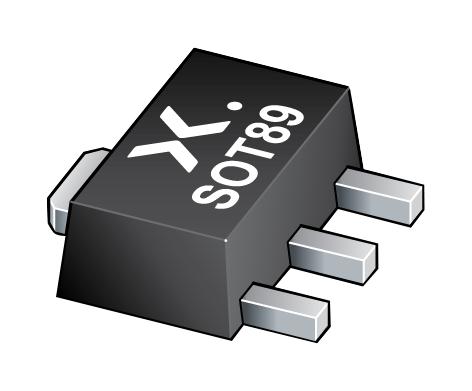

NPN power transistors in a power SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.

Catalog

60 V, 1 A NPN power bipolar transistors

Part	Operating Temperature	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max) [Max]	Mounting Type	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Package / Case	Grade	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Qualification	Power - Max [Max]
Freescale Semiconductor - NXP BCX55,135	150 °C	60 V	1 A	Surface Mount	NPN	500 mV	TO-243AA	Automotive	100 nA	100 MHz	100	AEC-Q101
Freescale Semiconductor - NXP BCX55TF	150 °C	60 V	1 A	Surface Mount	NPN	500 mV	TO-243AA	Automotive	100 nA		63 hFE	AEC-Q101	500 mW
Freescale Semiconductor - NXP BCX55-10TF	150 °C	60 V	1 A	Surface Mount	NPN	500 mV	TO-243AA	Automotive	100 nA		63 hFE	AEC-Q101	500 mW
Freescale Semiconductor - NXP BCX55,115	150 °C	60 V	1 A	Surface Mount	NPN	500 mV	TO-243AA		100 nA	180 MHz	63 hFE		1.35 W
