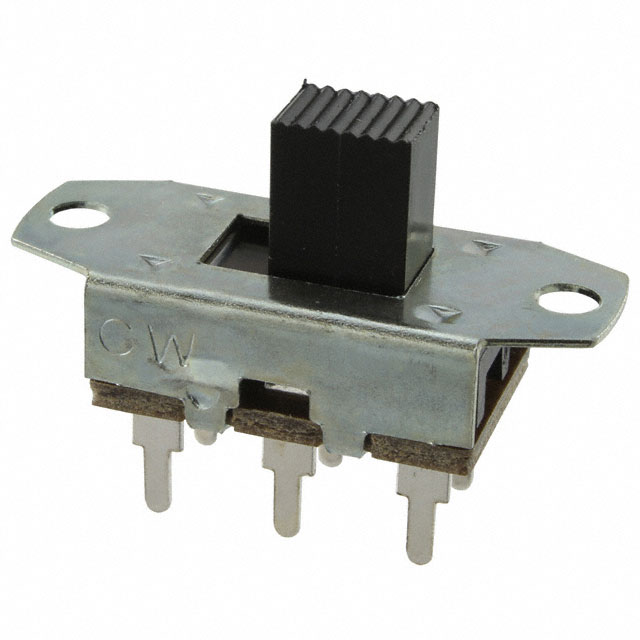

GF-626 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE DPDT 6A 125V
| Part | Switch Travel | Mechanical Life | Electrical Life | Actuator Material | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Circuit | Actuator Type | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination Style | Switch Function | Mounting Type | Voltage Rating - DC | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Not Specified | 6 A 500 mA | 125 V | DPDT | Standard | 8.74 mm | -10 °C | 104 °C | Copper | PC Pin | On-On | Panel Mount | 125 VDC | Silver |
 CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Not Specified | 6 A 500 mA | 125 V | DPDT | Standard | 8.74 mm | -10 °C | 104 °C | Copper | PC Pin | On-On | Panel Mount | 125 VDC | Silver |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Not Specified | 6 A 500 mA | 125 V | DPDT | Standard | 8.74 mm | -10 °C | 104 °C | Copper | Solder Lug | On-On | Panel Mount | 125 VDC | Silver |
CW Industries | 4.01 mm | 10000 Steps | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Not Specified | 6 A 500 mA | 125 V | DPDT | Standard | 8.74 mm | -10 °C | 104 °C | Copper | Wire Wrap | On-On | Panel Mount | 125 VDC | Silver |
