VX-53 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

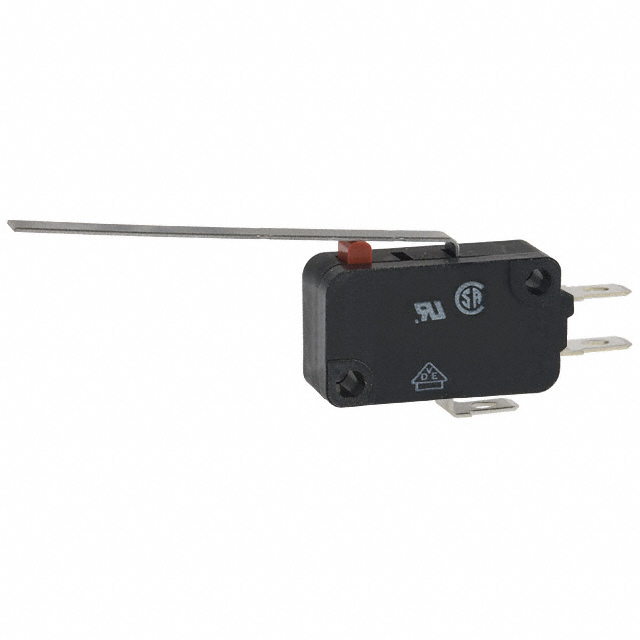

SWITCH SNAP ACTION SPDT 5A 125V
| Part | Current Rating (Amps) | Pretravel | Pretravel | Operating Position | Operating Position | Differential Travel | Differential Travel | Mounting Type | Switch Function | Circuit | Voltage Rating - DC | Operating Force | Termination Style | Voltage Rating - AC | Mechanical Life | Actuator Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Overtravel | Overtravel | Overtravel [custom] | Overtravel [custom] | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 A | 15 mm | 0.591 in | 0.598 " | 15.2 mm | 4.2 mm | 0.165 in | Chassis Mount | On-Mom | SPDT | 30 V | 20 gf | Solder Lug | 125 V | 50000000 Cycles | Lever Straight | IP40 | -25 °C | 80 °C | 500000 Cycles | 0.197 " | 5 mm | ||||
 Omron Electronics Inc-EMC Div | 5 A | 9 mm | 0.354 in | 0.6 in | 15.2 mm | 2 mm | 0.08 in | Chassis Mount | On-Mom | SPDT | 30 V | 20 gf | Solder Quick Connect | 125 V | 50000000 Cycles | Lever Straight | IP40 | -25 °C | 80 °C | 500000 Cycles | 0.125 in | 3.2 mm | 4.7 mm | 0.187 in |
