LUPA1300-2 Series

CMOS Image Sensor, High Speed, 1.3 MP (SXGA)

Catalog

CMOS Image Sensor, High Speed, 1.3 MP (SXGA)

Part	Package / Case	Frames per Second	Type	Active Pixel Array [x]	Active Pixel Array [y]	Supplier Device Package	Voltage - Supply	Pixel Size [y]	Pixel Size [x]	Operating Temperature [Max]	Operating Temperature [Min]
ON Semiconductor NOIL2SM1300A-GDC	168-CPGA	30	CMOS	1280	1024	168-PGA	2.5 V 3.3 V	14 µm	14 µm	85 °C	-50 °C

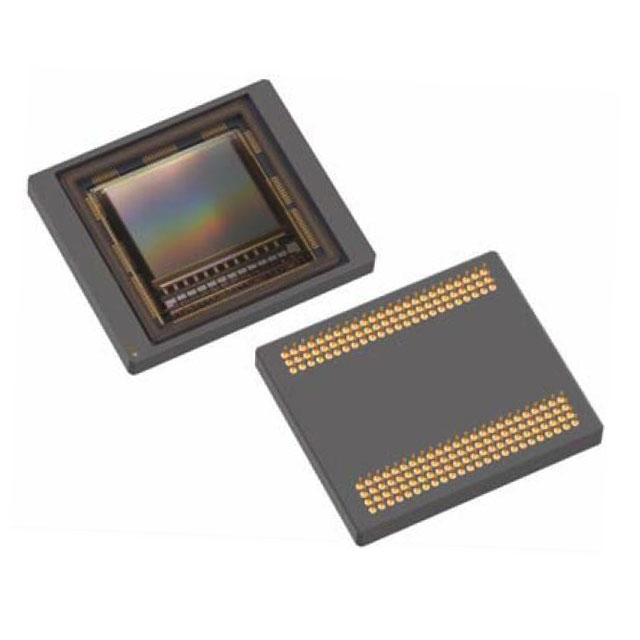

ON Semiconductor NOIL2SC1300A-GDC	168-CPGA	30	CMOS	1280	1024	168-PGA	2.5 V 3.3 V	5.2 µm	14 µm	85 °C	-50 °C

Catalog

CMOS Image Sensor, High Speed, 1.3 MP (SXGA)

Key Features

• Runs at 500 fps and has triggered and pipelined shutter modes

• 24 parallel 10-bit A/D converters with an aggregate conversion rate of 740 MSPS

• Integrated digital column FPN correction

• Industrial monitoring

Description

LUPA1300-2 is an integrated SXGA high speed, high sensitivity CMOS image sensor. This sensor targets high speed machine vision and industrial monitoring applications. The LUPA1300-2 sensor runs at 500 fps and has triggered and pipelined shutter modes. It packs 24 parallel 10-bit A/D converters with an aggregate conversion rate of 740 MSPS. On-chip digital column FPN correction enables the sensor to output ready to use image data for most applications.
