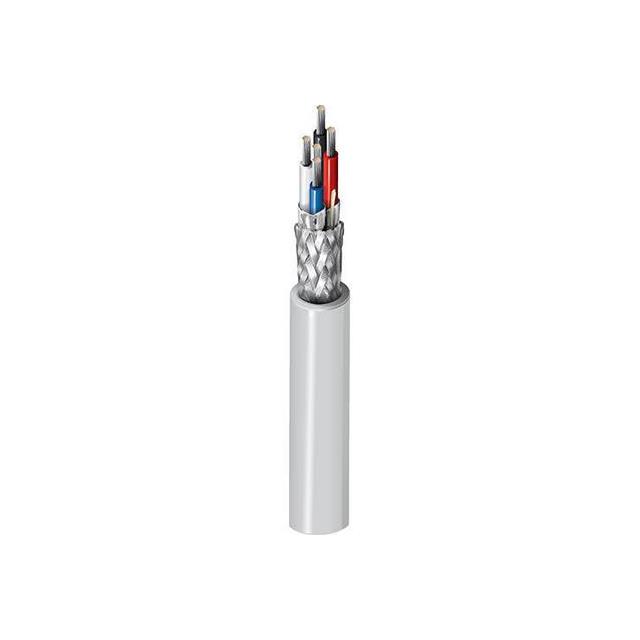

3085A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 22/24AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Conductor Insulation | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Features | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Braid Foil | 0.28 in | 7.11 mm | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 75 ░C | -30 ░C | 300 VDC | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Yellow | Multi-Pair | 0.033 in | 0.838 mm | 22 AWG 24 AWG | Drain Wire Oil Resistant UV Resistant | 36 | 19 | 4 |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Braid Foil | 0.28 in | 7.11 mm | Poly-Vinyl Chloride (PVC) | 75 ░C | -30 ░C | 300 VDC | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Yellow | Multi-Pair | 0.033 in | 0.838 mm | 22 AWG 24 AWG | Drain Wire Oil Resistant UV Resistant | 36 | 19 | 4 |
