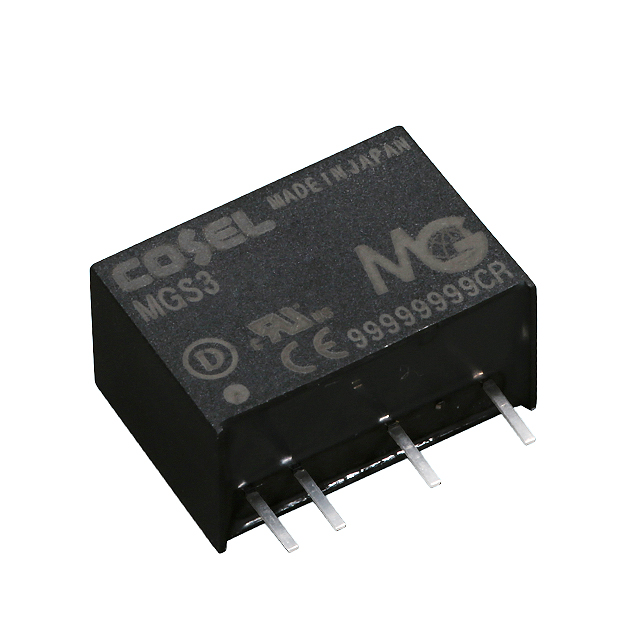

MGS3123 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER 3.3V
| Part | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Applications | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Voltage - Input (Min) [Min] | Features | Current - Output (Max) [Max] | Efficiency | Voltage - Isolation | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 1 | -40 °C | 85 °C | 3.3 V | 18 V | ITE (Commercial) | Through Hole | 0.67 " | 17 mm | 8.5 mm | 12 mm | 0.47 " | 0.33 " | 4-SIP Module | 9 V | OCP | 0.8 A | 80 % | 1.5 kV | Isolated Module |
