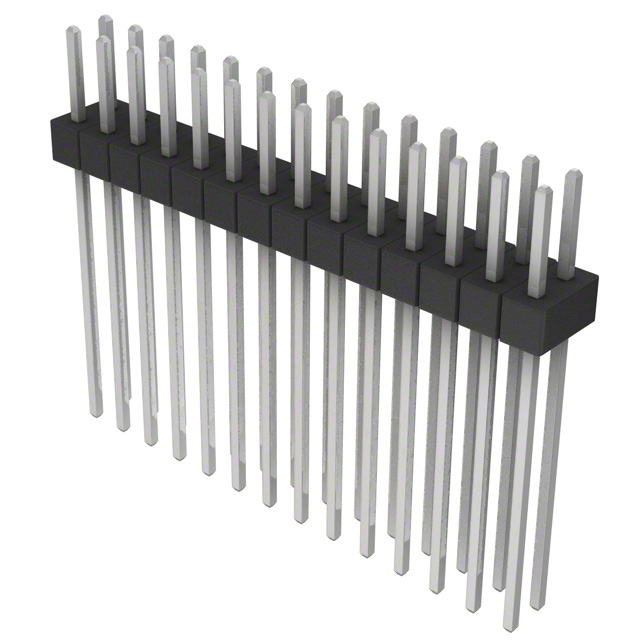

PEC14 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Shrouding	Style	Current Rating (Amps)	Connector Type	Contact Shape	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Material Flammability Rating	Insulation Color	Fastening Type	Mounting Type	Overall Contact Length	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [custom]	Contact Length - Post [custom]

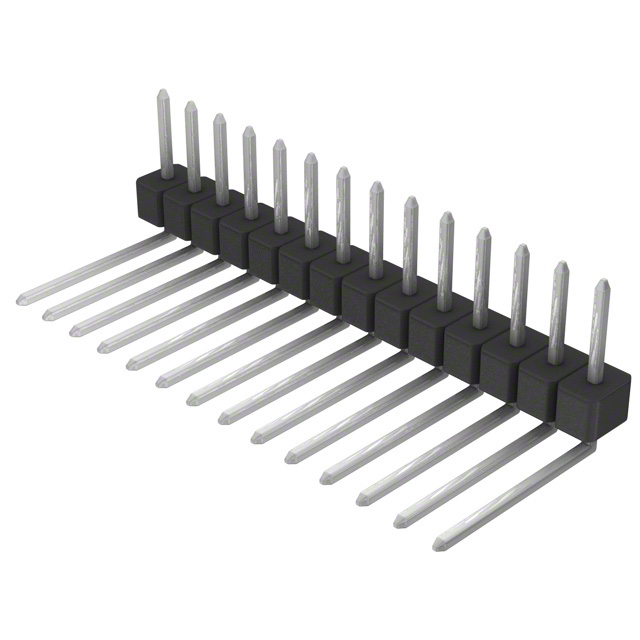

Sullins Connector Solutions PEC14SBDN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1	10.16 mm	0.4 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	3.56 mm	0.14 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Right Angle Through Hole

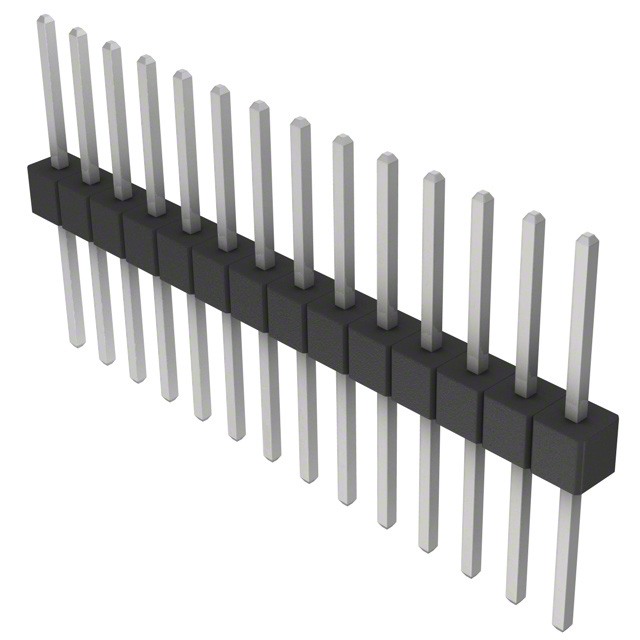

Sullins Connector Solutions PEC14SFCN	2.54 µm	100 µin	0.318 in	8.08 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1	8.13 mm	0.32 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	18.75 mm	0.738 in
Sullins Connector Solutions PEC14DAHN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	28	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square		20.83 mm	0.82 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	29.21 mm		1.15 in	2	0.1 in	2.54 mm

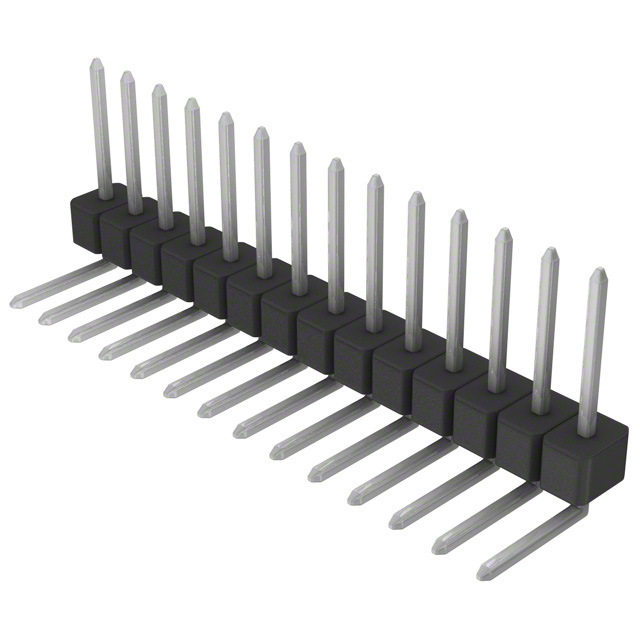

Sullins Connector Solutions PEC14SGBN	2.54 µm	100 µin	0.318 in	8.08 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1			Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	3.56 mm	0.14 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Right Angle Through Hole							5.08 mm	0.2 "

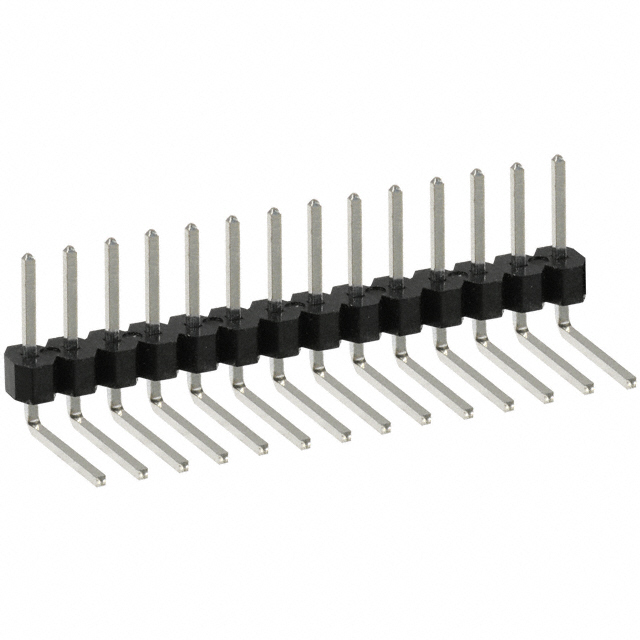

Sullins Connector Solutions PEC14SBCN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1	7.62 mm	0.3 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	3.56 mm	0.14 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Right Angle Through Hole

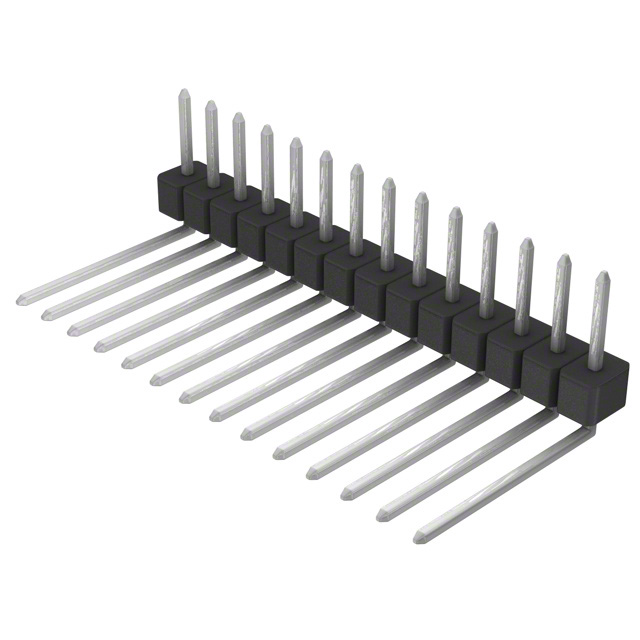

Sullins Connector Solutions PEC14SBEN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1	12.7 mm	0.5 "	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	3.56 mm	0.14 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Right Angle Through Hole

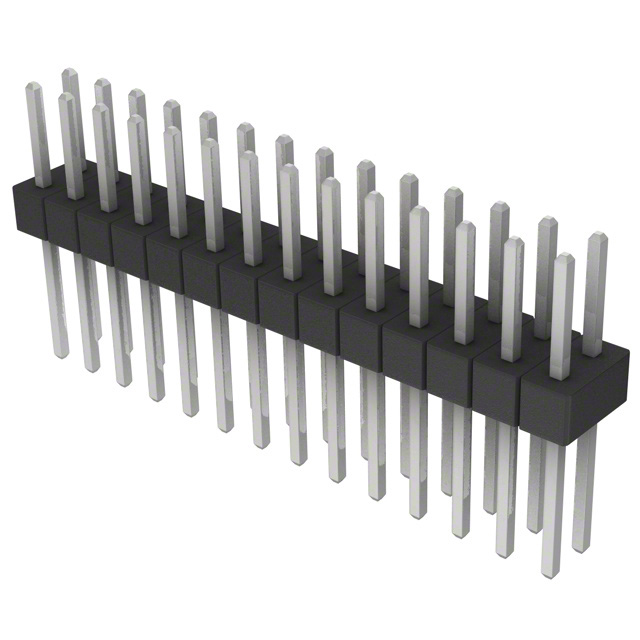

Sullins Connector Solutions PEC14DACN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	28	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square		8.13 mm	0.32 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	16.51 mm		0.65 in	2	0.1 in	2.54 mm

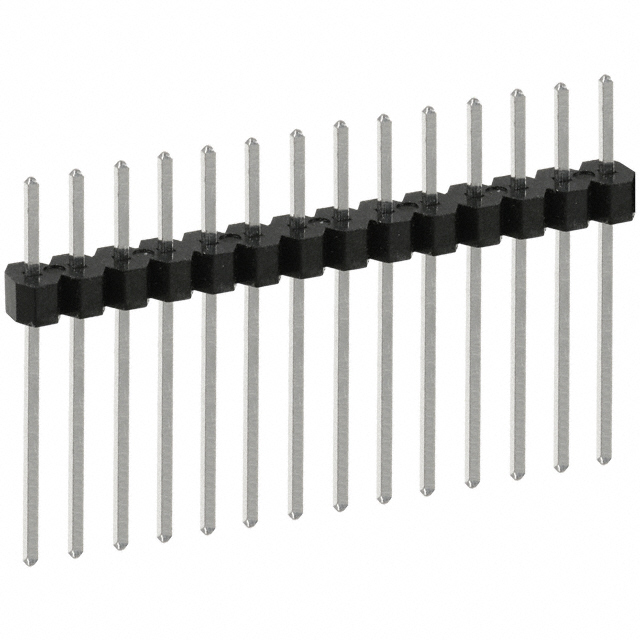

Sullins Connector Solutions PEC14SAFN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	14	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square	1			Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	24.13 mm		0.95 in				15.75 mm	0.62 "

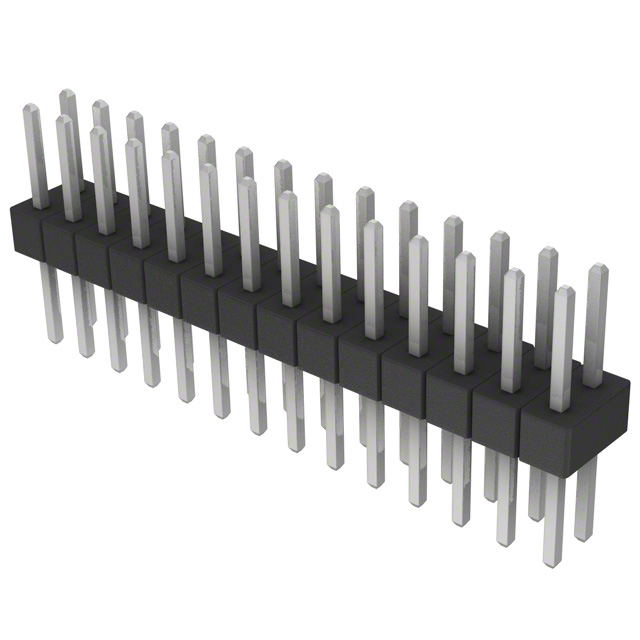

Sullins Connector Solutions PEC14DABN	2.54 µm	100 µin	0.23 in	5.84 mm	100 çin	2.54 çm	Phosphor Bronze	28	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square		5.84 mm	0.23 "	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	14.22 mm		0.56 in	2	0.1 in	2.54 mm

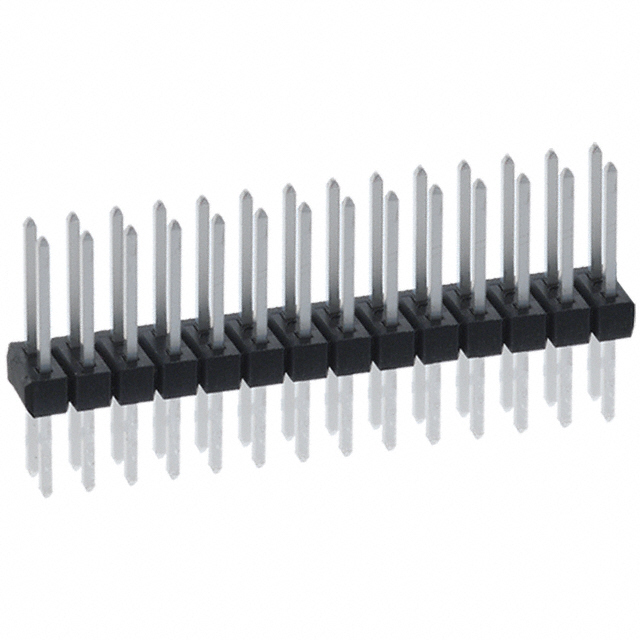

Sullins Connector Solutions PEC14DFBN	2.54 µm	100 µin	0.318 in	8.08 mm	100 çin	2.54 çm	Phosphor Bronze	28	Unshrouded	Board to Board Cable	3 A	Header Breakaway	Square		5.58 mm	0.22 in	Male Pin	Tin	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	-65 ░C	125 °C	All	Solder	UL94 V-0	Black	Push-Pull	Through Hole	16.21 mm		0.638 in	2	0.1 in	2.54 mm
