207613 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

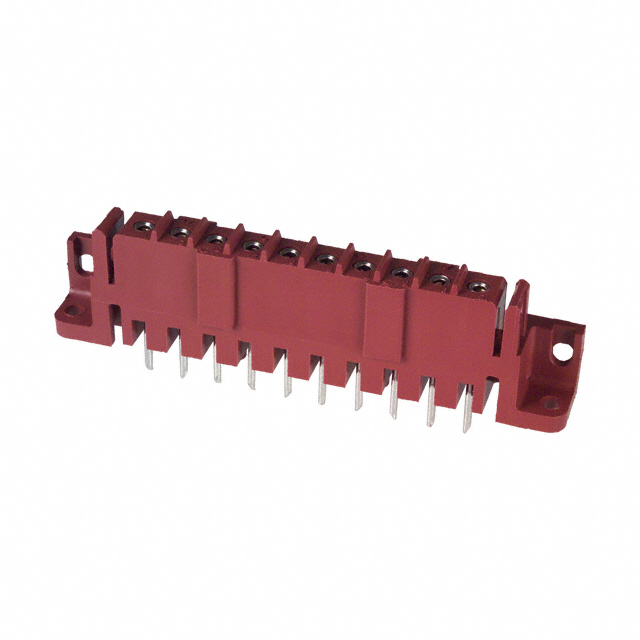

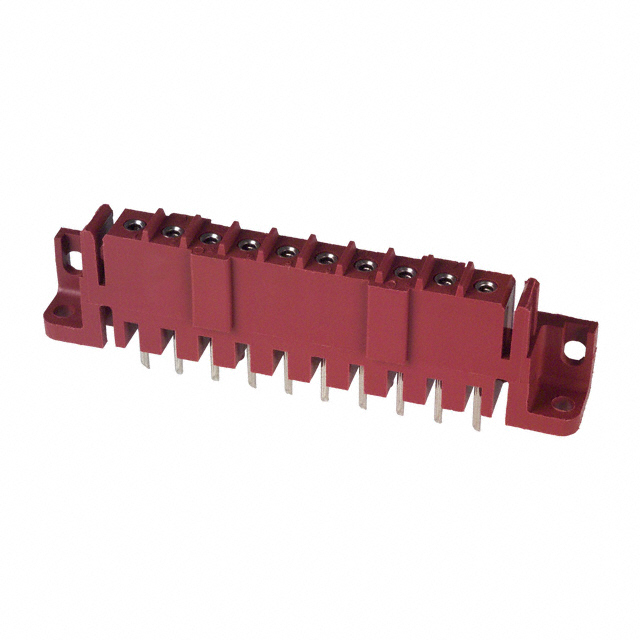

CONN HDR 10POS 0.197 TIN PCB
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Connector Type | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Features | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Current Rating (Amps) | Fastening Type | Contact Material | Contact Finish - Post | Number of Positions | Termination | Contact Type | Mounting Type | Contact Shape | Number of Positions Loaded | Insulation Material | Voltage Rating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 150 Áin | 3.81 Ám | Board to Cable/Wire | Header | 0.768 " | 19.5 mm | 130 °C | -55 °C | Mounting Flange | 1 | 150 Áin | 3.81 Ám | Black | 7.5 A | Latch Holder | Phosphor Bronze | Tin | 10 | Solder | Female Socket | Through Hole | Circular | All | Thermoplastic | 600 V | 5 mm | 0.197 " | UL94 V-0 | |
 TE Connectivity Raychem Cable Protection | 30 Áin | 0.76 Ám | Board to Cable/Wire | Header | 0.768 " | 19.5 mm | 130 °C | -55 °C | Mounting Flange | 1 | 150 Áin | 3.81 Ám | Black | 7.5 A | Latch Holder | Phosphor Bronze | Tin-Lead | 10 | Solder | Female Socket | Through Hole | Circular | All | Thermoplastic | 600 V | 5 mm | 0.197 " | UL94 V-0 | Gold |
