MC9238 Series

Catalog

FAN AXIAL 92X38MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Fan Type	Approval Agency	Voltage - Rated	Air Flow	Air Flow	Noise	Bearing Type	Weight	Weight	RPM	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Features	Static Pressure	Static Pressure	Termination	Voltage Range [Max]	Voltage Range [Min]
Mechatronics Fan Group MC9238H12B-FS	0.35 A	Polybutylene Terephthalate (PBT)	Tubeaxial	CE cUL TUV UL	12 VDC	1.69 m³/min	60.3 CFM	35.5 dB	Ball	181.44 g	0.4 lb	3000 RPM	92 mm	92 mm	38 mm	Thermal Overload Protector (TOP)	79.7 Pa	0.32 in H2O	2 Wire Leads

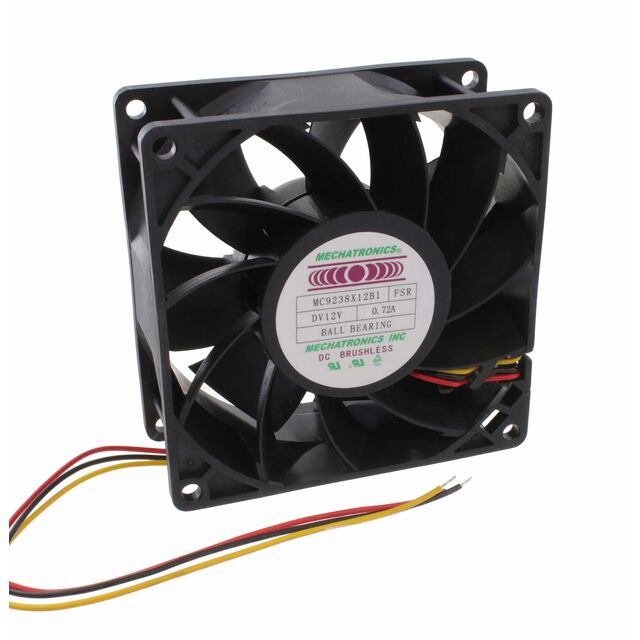

Mechatronics Fan Group MC9238X12B1-FSR	0.72 A	Polybutylene Terephthalate (PBT)	Tubeaxial	CE cUL TUV UL	12 VDC	2.25 mł/min	80.2 CFM	47.5 dB	Ball	181.44 g	0.4 lb	4000 RPM	92 mm	92 mm	38 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	104.6 Pa	0.42 in H2O	3 Wire Leads	13.8 VDC	6 VDC
Mechatronics Fan Group MC9238L12B1-FS	120 mA	Polybutylene Terephthalate (PBT)	Tubeaxial	CE cUL TUV UL	12 VDC	1.13 mł/min	40.2 CFM	23.5 dB(A)	Ball	181.44 g	0.4 lb	2000 RPM	92 mm	92 mm	38 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	52.3 Pa	0.21 in H2O	3 Wire Leads
Mechatronics Fan Group MC9238X24B-FSR		Polybutylene Terephthalate (PBT)	Tubeaxial	CE cUL TUV UL	24 VDC			47.5 dB	Ball	181.44 g	0.4 lb	4000 RPM	92 mm	92 mm	38 mm	Thermal Overload Protector (TOP)			2 Wire Leads
