LD09P33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB PLUG 9POS R/A SLDR
| Part | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Flange Feature | Contact Finish Thickness | Number of Rows [custom] | Features | Number of Positions | Backset Spacing | Backset Spacing | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Shell Material, Finish | Connector Style | Contact Finish | Connector Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

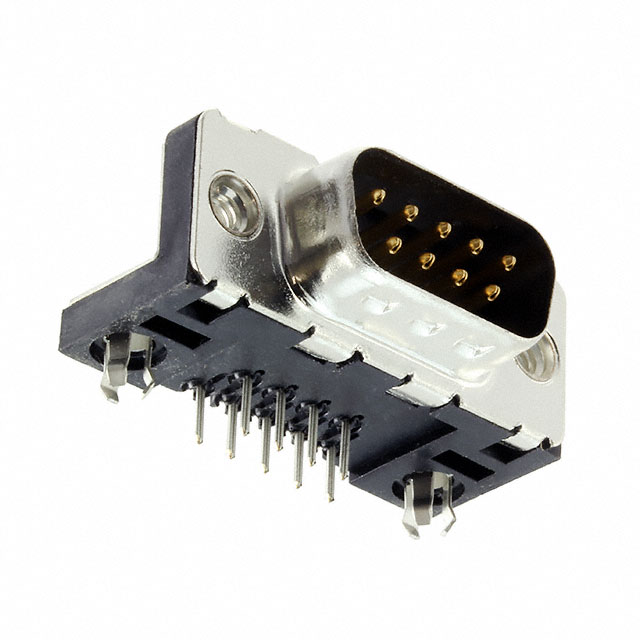

 Amphenol ICC (FCI) | Black | Copper Alloy | 250 V | -55 C | 105 ░C | Thermoplastic | Solder | 1 | DE E | Signal | 4-40 Mating Side Female Screwlock | Flash | 2 | Board Lock Grounding Indents | 9 | 8.08 mm | 0.318 " | 5 A | Right Angle Through Hole | UL94 V-0 | Steel Tin-Nickel Plated | D-Sub | Gold | Plug Male Pins | |

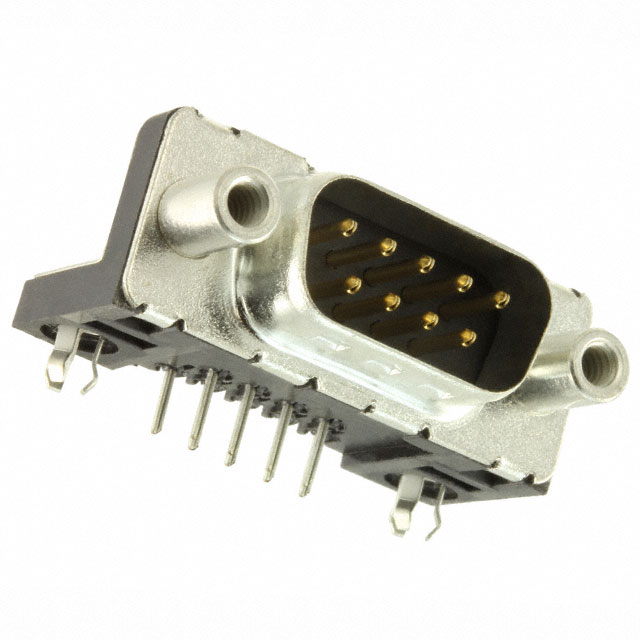

 Amphenol ICC (FCI) | Black | Copper Alloy | 250 V | -55 C | 105 ░C | Thermoplastic | Solder | 1 | DE E | Signal | Housing/Shell | Flash | 2 | Board Lock Grounding Indents | 9 | 8.08 mm | 0.318 " | 5 A | Right Angle Through Hole | UL94 V-0 | Steel Tin-Nickel Plated | D-Sub | Gold | Plug Male Pins | 4-40 |
