TPS61175-Q1 Series

3-A, 40-V high voltage boost converter with soft-start and programmable switching frequency

Catalog

3-A, 40-V high voltage boost converter with soft-start and programmable switching frequency

Part	Mounting Type	Output Type	Number of Outputs	Voltage - Input (Max) [Max]	Function	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Current - Output	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Topology	Voltage - Output (Max)	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Frequency - Switching	Voltage - Output	Qualification	Grade
Texas Instruments TPS61175PWP	Surface Mount	Adjustable	1	18 V	Step-Up Step-Up/Step-Down	2.2 MHz	200 kHz	85 °C	-40 °C	Positive	3 A	2.9 V	2.9 V	Boost Flyback SEPIC	38 V	14-PowerTSSOP	4.4 mm	0.173 in	14-HTSSOP

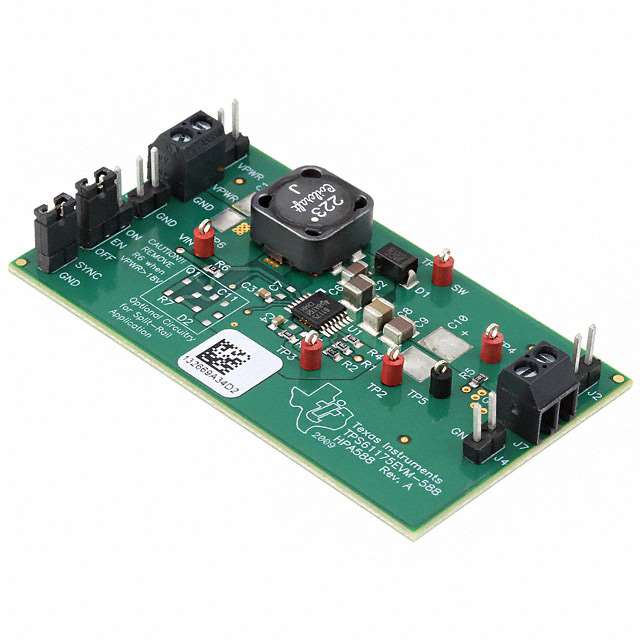

Texas Instruments TPS61175EVM-588											750 mA									18 V	5 V	DC/DC Step Up	TPS61175	Fully Populated	Non-Isolated	1	Board(s)	Buck-Boost	750 kHz	12 V
Texas Instruments TPS61175QPWPRQ1	Surface Mount	Adjustable	1	18 V	Step-Up Step-Up/Step-Down	2.2 MHz	200 kHz	125 °C	-40 °C	Positive	3 A	2.9 V	2.9 V	Boost Flyback SEPIC	38 V	14-PowerTSSOP	4.4 mm	0.173 in	14-HTSSOP												AEC-Q100	Automotive

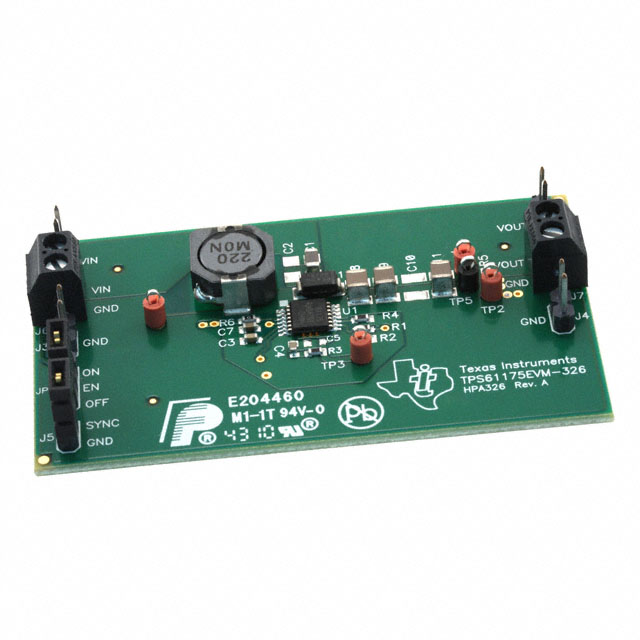

Texas Instruments TPS61175EVM-326											1.2 A									18 V	2.9 V	DC/DC Step Up	TPS61175	Fully Populated	Non-Isolated	1	Board(s)	Boost	750 kHz	24 V

Catalog

3-A, 40-V high voltage boost converter with soft-start and programmable switching frequency

Key Features

• AEC-Q100 qualified with the following results:Device temperature grade 1: -40°C to 125°C junction operating temperature rangeFunctional Safety-CapableDocumentation available to aid functional safety system design2.9-V to 18-V Input voltage range3-A, 40-V Internal switchHigh efficiency power conversion: up to 93%Frequency set by external resistor: 200 kHz to 2.2 MHzSynchronous external switching frequencyUser defined soft start into full loadSkip-switching cycle for output regulation at light load14-pin HTSSOP package with PowerPAD™AEC-Q100 qualified with the following results:Device temperature grade 1: -40°C to 125°C junction operating temperature rangeFunctional Safety-CapableDocumentation available to aid functional safety system design2.9-V to 18-V Input voltage range3-A, 40-V Internal switchHigh efficiency power conversion: up to 93%Frequency set by external resistor: 200 kHz to 2.2 MHzSynchronous external switching frequencyUser defined soft start into full loadSkip-switching cycle for output regulation at light load14-pin HTSSOP package with PowerPAD™

Description

The TPS61175-Q1 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails. The TPS61175-Q1 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is either set by an external resistor or an external clock signal. The user can program the switching frequency from 200-kHz to 2.2-MHz. The device features a programmable soft-start function to limit inrush current during start-up, and has built-in other protection features, such as pulse-by-pulse over current limit and thermal shutdown. The TPS61175-Q1 is available in 14-pin HTSSOP package with PowerPAD. The TPS61175-Q1 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails. The TPS61175-Q1 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is either set by an external resistor or an external clock signal. The user can program the switching frequency from 200-kHz to 2.2-MHz. The device features a programmable soft-start function to limit inrush current during start-up, and has built-in other protection features, such as pulse-by-pulse over current limit and thermal shutdown. The TPS61175-Q1 is available in 14-pin HTSSOP package with PowerPAD.
