Rocker Switches
Rocker Switches
| Part | Actuator Marking | Voltage Rating - DC | Termination Style | Circuit | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Voltage Rating - AC | Color - Actuator/Cap | Electrical Life | Current Rating (Amps) | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

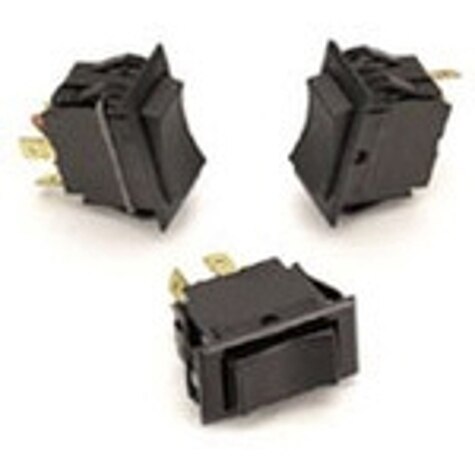

 Carling Technologies | No Marking | 28 V | Quick Connect - 0.250" (6.3mm) | SPDT | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | On-Off-On | 85 °C | -40 °C | CSA UL VDE | Concave (Curved) |

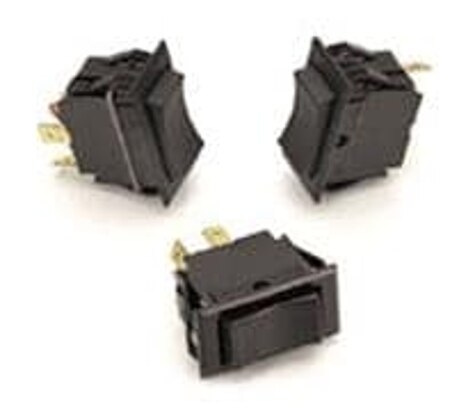

Carling Technologies | No Marking | 28 V | Quick Connect - 0.250" (6.3mm) | DPDT | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | On-Off-Mom | 85 °C | 0 °C | CSA UL VDE | Flat |
Carling Technologies | No Marking | 28 V | Quick Connect - 0.250" (6.3mm) | SPDT | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | White | 50000 Cycles | 15 A | Mom-Off-Mom | CSA UL VDE | Concave (Curved) | ||
 Carling Technologies | No Marking | 28 V | Screw Terminal | SPST-NO | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | Off-Mom | CSA UL VDE | Concave (Curved) | ||
Carling Technologies | No Marking | 28 V | Screw Terminal | SPST-NO | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | Off-Mom | CSA UL VDE | Concave (Curved) | ||
Carling Technologies | No Marking | 28 V | Quick Connect - 0.250" (6.3mm) | SPDT | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | Mom-Off-Mom | CSA UL VDE | Flat | ||
 Carling Technologies | No Marking | Screw Terminal | SPST | 21.08 mm | 36.83 mm | Panel Mount Snap-In | White | 50000 Cycles | On-Off | CSA UL VDE | Concave (Curved) | |||||
 Carling Technologies | No Marking | 28 V | Quick Connect - 0.250" (6.3mm) | SPDT | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 15 A | Mom-Off-Mom | CSA UL VDE | Concave (Curved) | ||
Carling Technologies | No Marking | Quick Connect - 0.250" (6.3mm) | SPST | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | Black | 50000 Cycles | 20 A | On-Off | CSA UL VDE | Concave (Curved) | |||
Carling Technologies | O I | 28 V | Quick Connect - 0.250" (6.3mm) | DPST | 21.08 mm | 36.83 mm | Panel Mount Snap-In | 125 V | White | 50000 Cycles | 15 A | On-Off | CSA UL VDE | Concave (Curved) |
