19101 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

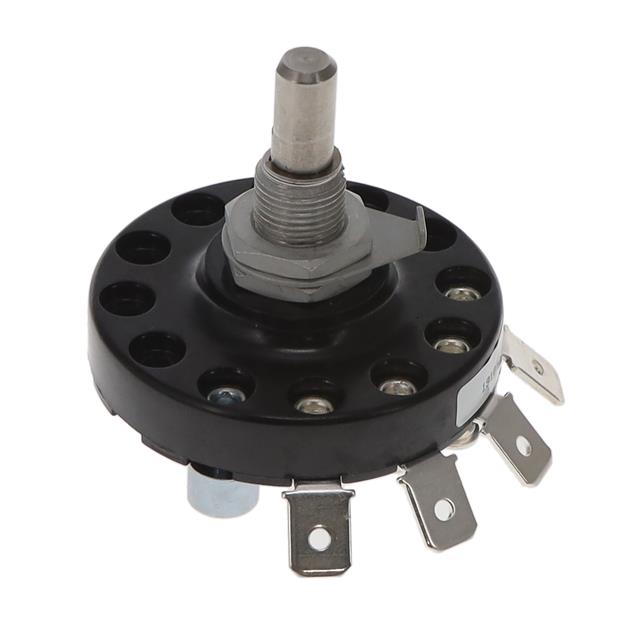

SWITCH ROTARY 7POS 15A 120V
| Part | Number of Positions | Circuit per Deck | Contact Material | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Depth Behind Panel [z] | Index Stops | Contact Timing | Mounting Type | Angle of Throw | Actuator Type | Number of Poles per Deck | Number of Decks [custom] | Termination Style | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 7 | SP7T | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
 Grayhill Inc. | 6 | SP6T | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
Grayhill Inc. | 8 | SP8T | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
Grayhill Inc. | 2 | SPDT | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
 Grayhill Inc. | 11 | SP11T | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
 Grayhill Inc. | SP3T | Silver Alloy | 1 A 15 A | 120 V | 120 V | 24.13 mm | Fixed | Non-Shorting (BBM) | Panel Mount | 30 ° | Flatted (6.35mm Dia) | 1 | 1 | Quick Connect - 0.250" (6.3mm) | 0.5 in |
