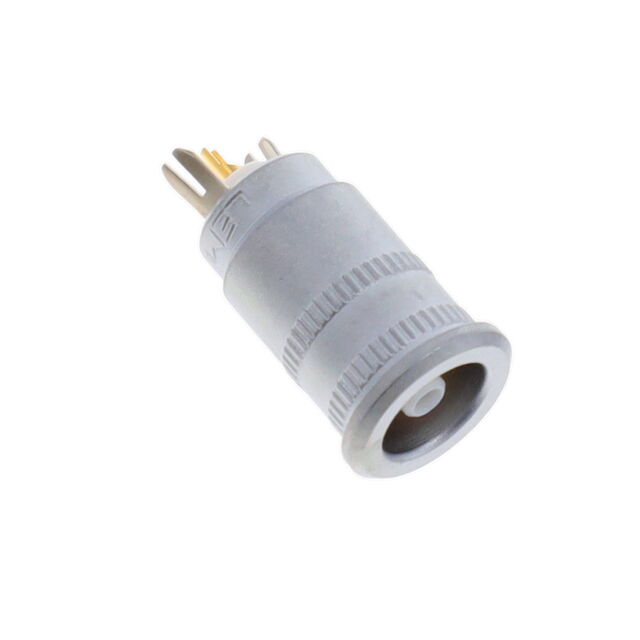

ERT.00.250 Series
Manufacturer: LEMO
Beta
⌘K
CONN NIMCAMAC RCPT STR 50 OHM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Dielectric Material | Center Contact Plating | Mating Cycles | Body Material | Connector Style | Shield Termination | Center Contact Material | Impedance | Contact Termination | Housing Color | Mounting Type | Ingress Protection | Connector Type | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | -55 C | 260 °C | Chrome | 700 VDC | Polytetrafluoroethylene (PTFE) | Gold | 5000 | Brass | NIM-CAMAC CD/N 549 | Solder | Bronze | 50 Ohms | Solder Cup | Silver | Panel Mount | IP50 - Dust Protected | Receptacle Female Socket | Push-Pull | 1 |
 LEMO | -55 C | 260 °C | Nickel | 700 VDC | Polytetrafluoroethylene (PTFE) | Gold | 5000 | Brass | NIM-CAMAC CD/N 549 | Solder | Bronze | 50 Ohms | Solder Cup | Silver | Panel Mount | IP50 - Dust Protected | Receptacle Female Socket | Push-Pull | 1 |
