746-027 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 27POS 0.125

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Termination	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Number of Rows	Contact Finish	Contact Type	Contact Material	Color	Card Thickness [Max]	Card Thickness [Min]	Card Type	Gender
EDAC Inc. 746-027-527-101	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-520-101	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female

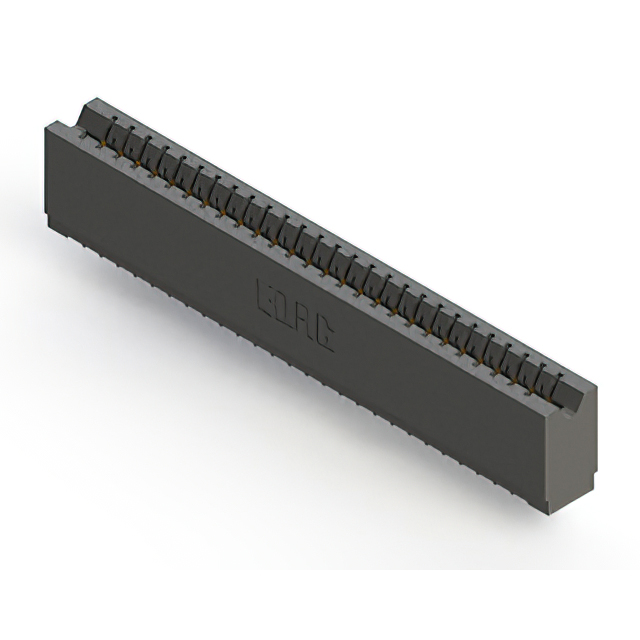

EDAC Inc. 746-027-525-506	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-545-501	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit Wire Wrap	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-545-506	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit Wire Wrap	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-525-106	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-540-506	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit Wire Wrap	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-520-506	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female

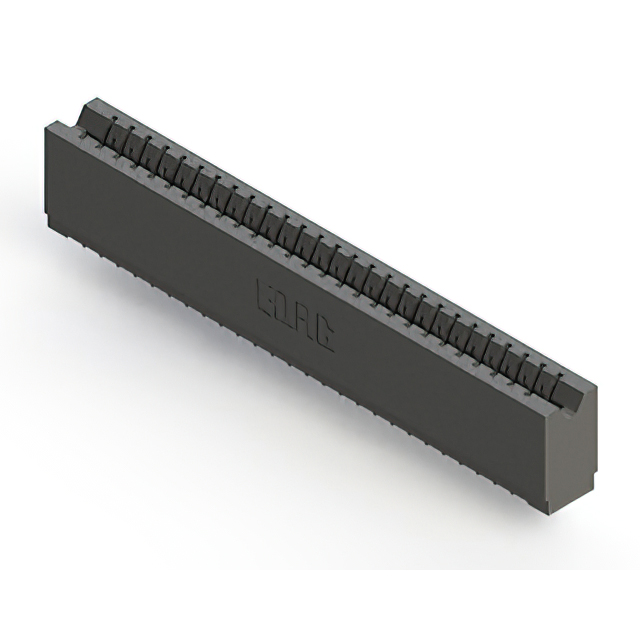

EDAC Inc. 746-027-520-106	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
EDAC Inc. 746-027-527-506	1	Polyester Thermoplastic	3.18 mm	0.125 in	-40 C	105 ░C	Single	Press-Fit	27	30 Áin	0.76 Ám	27	Through Hole	1	Gold	Cantilever	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Female
