ST730 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

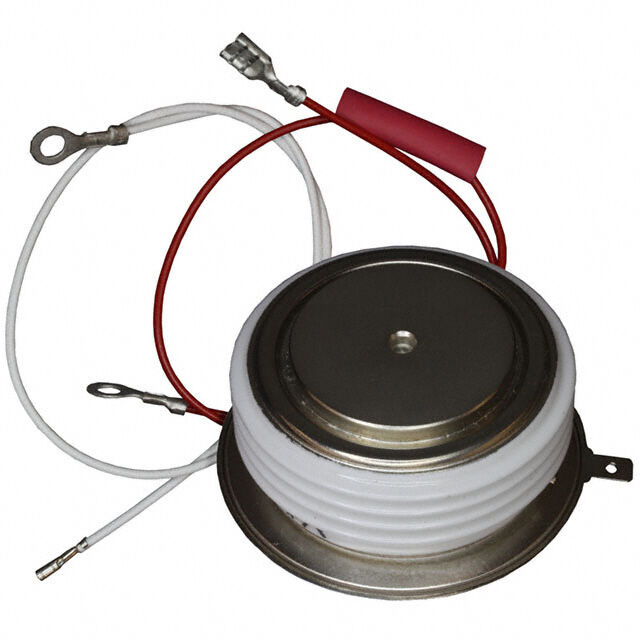

SCR 1.6KV 2000A B-PUK

Part	Current - On State (It (RMS)) (Max)	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Voltage - On State (Vtm) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Current - Off State (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]
Vishay General Semiconductor - Diodes Division VS-ST730C16L1L	2000 A	B-PUK TO-200AC	200 mA	1.6 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C20L1L	2000 A	B-PUK TO-200AC	200 mA	2 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C16L0	2000 A	B-PUK TO-200AC	200 mA	1.6 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA		Standard Recovery	18700 A	17800 A
Vishay General Semiconductor - Diodes Division VS-ST730C14L1	2000 A	B-PUK TO-200AC	200 mA	1.4 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C14L0L	2000 A	B-PUK TO-200AC	200 mA	1.4 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C08L1	2000 A	B-PUK TO-200AC	200 mA	800 V	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C12L0L	2000 A	B-PUK TO-200AC	200 mA	1.2 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C12L1L	2000 A	B-PUK TO-200AC	200 mA	1.2 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C16L0L	2000 A	B-PUK TO-200AC	200 mA	1.6 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST730C12L1	2000 A	B-PUK TO-200AC	200 mA	1.2 kV	1.62 V	125 °C	-40 °C	B-PUK TO-200AC	990 A	Clamp On	80 mA	15000 A 15700 A	Standard Recovery
