829822 Series

Catalog

CONN HDR 100POS 0.1 STACK T/H

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Contact Finish - Post (Mating)	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Pitch	Pitch	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Color	Length - Tail	Length - Tail	Number of Rows [custom]	Contact Finish Thickness - Post (Mating) [custom]	Contact Finish Thickness - Post (Mating) [custom]
TE Connectivity AMP Connectors 5-829822-0	9.1 mm	0.358 in	Through Hole	Gold	Solder	1.075 in	27.3 mm	2.54 mm	0.1 "	0.1 "	2.54 mm	39.4 mm	1.551 in	100	Green	3 mm	0.118 in	2	0.8 µm	31.5 µin

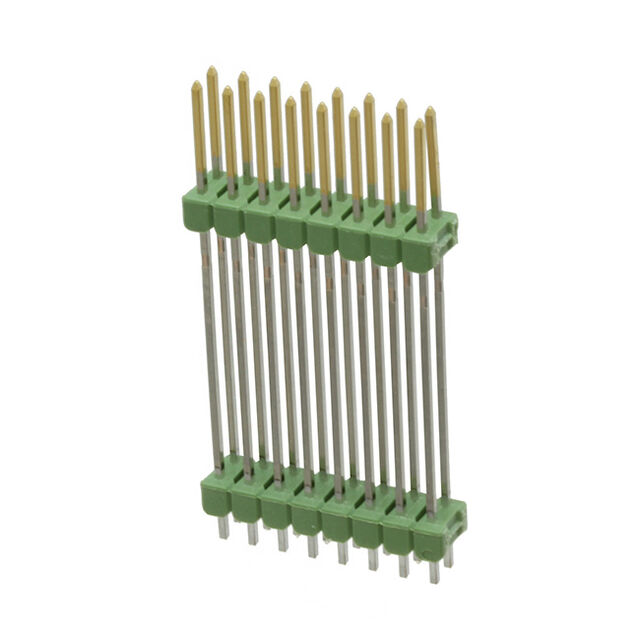

TE Connectivity AMP Connectors 829822-8	9.1 mm	0.358 in	Through Hole	Gold	Solder	1.075 in	27.3 mm	2.54 mm	0.1 "	0.1 "	2.54 mm	39.4 mm	1.551 in	16	Green	3 mm	0.118 in	2	0.8 µm	31.5 µin
