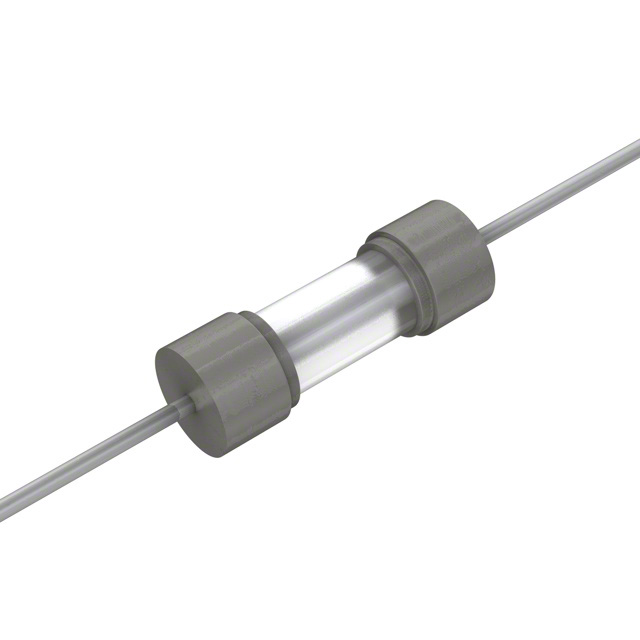

0672.250 Series

FUSE 3.6X10MM UL GLASS FA .250A PT

Catalog

FUSE 3.6X10MM UL GLASS FA .250A PT

Part	Response Time	DC Cold Resistance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Melting I²t	Voltage Rating - AC	Mounting Type	Approval Agency	Current Rating (Amps)	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products 0672.250MXE	Fast Blow	1.612 Ohms	0.433 in	3.9 mm	0.154 in	11 mm	Cartridge Non-Standard (Axial)	0.0225	250 V	Through Hole	CSA UL	0.25 A	50 A
Littelfuse/Commercial Vehicle Products 0672.250DRT4	Fast Blow	1.612 Ohms	0.433 in	3.9 mm	0.154 in	11 mm	Cartridge Non-Standard (Axial)	0.0225	250 V	Through Hole	CSA UL	0.25 A	50 A

FUSE 3.6X10MM UL GLASS FA .250A PT

• Designed to UL/CSA 248 Standard.

• Fast-Acting, glass body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply,and adapter applications.

NOT RECOMMENDED FOR NEW DESIGN. PLEASE USE THE 874 Series.
