1.15114 Series

Manufacturer: RAFI USA

Catalog

SWITCH PUSH SPST-NO 0.1A 35V

Part	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Ingress Protection	Circuit	Switch Function	Current Rating (Amps)	Mounting Type	Type	Voltage Rating - AC	Color - Actuator/Cap

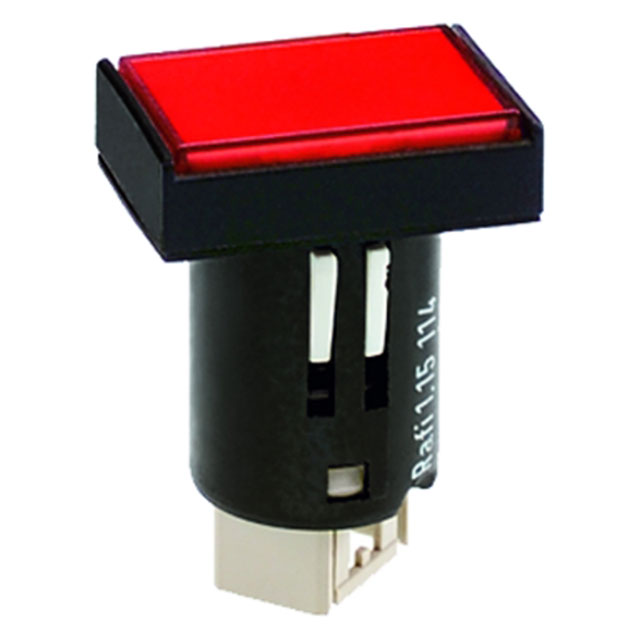

RAFI USA 1.15114.9660000	No Marking	-25 °C	70 °C	35 V	1000000 Cycles	16.1 mm	Button Rectangular	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard

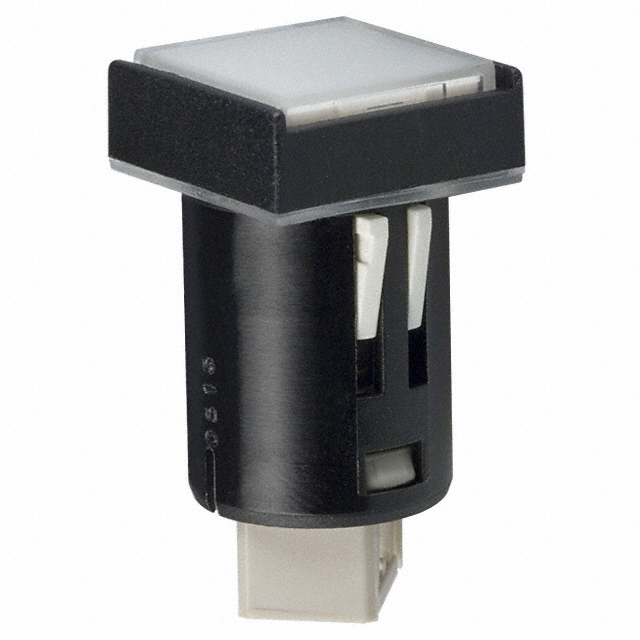

RAFI USA 1.15114.0061002	No Marking	-25 °C	70 °C	42 V		16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard	42 V	Clear

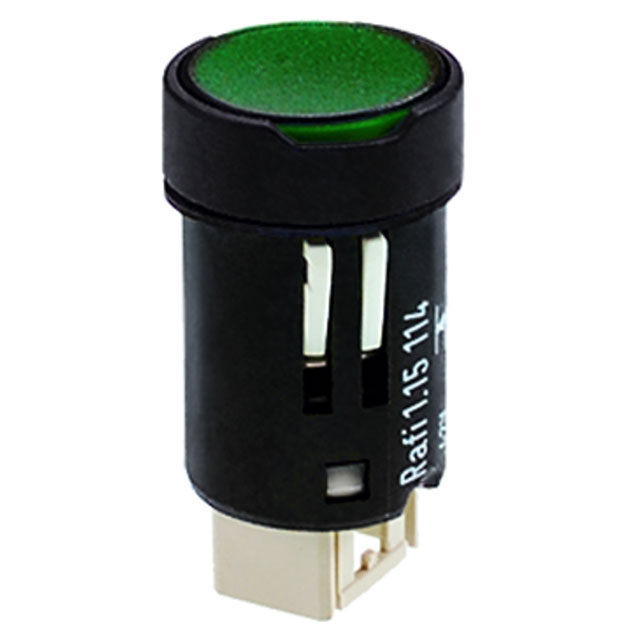

RAFI USA 1.15114.9360000	No Marking	-25 °C	70 °C	35 V		16.1 mm	Button Round	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard
RAFI USA 1.15114.9360000	No Marking	-25 °C	70 °C	35 V	1000000 Cycles	16.1 mm	Button Round	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard
RAFI USA 1.15114.0061002	No Marking	-25 °C	70 °C	42 V		16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard	42 V	Clear

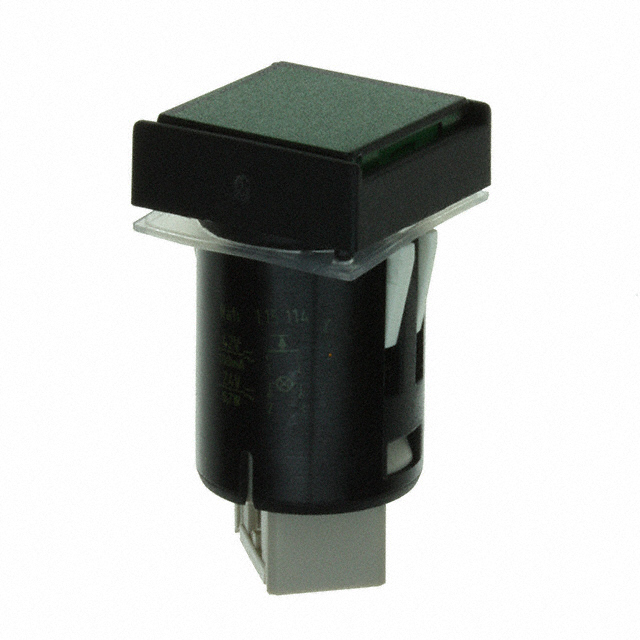

RAFI USA 1.15114.0061505	No Marking	-25 °C	70 °C	42 V		16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard	42 V	Clear

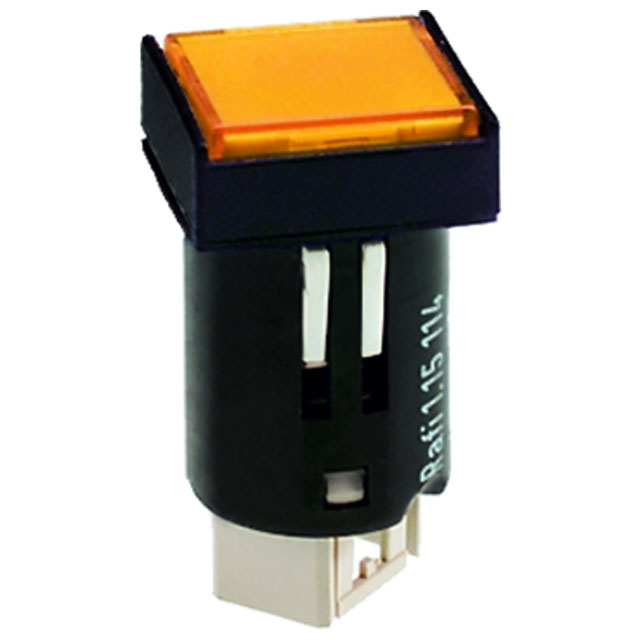

RAFI USA 1.15114.9060000	No Marking	-25 °C	70 °C	35 V		16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard
RAFI USA 1.15114.9060000	No Marking	-25 °C	70 °C	35 V	1000000 Cycles	16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard
RAFI USA 1.15114.9660000	No Marking	-25 °C	70 °C	35 V		16.1 mm	Button Rectangular	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard
RAFI USA 1.15114.0061505	No Marking	-25 °C	70 °C	42 V		16.1 mm	Button Square	Connector	IP65 - Dust Tight Water Resistant	SPST-NO	Off-Mom	100 mA	Panel Mount Front	Illuminated Standard	42 V	Clear
