P9S101 Series
Manufacturer: Rosenberger
Beta
⌘K

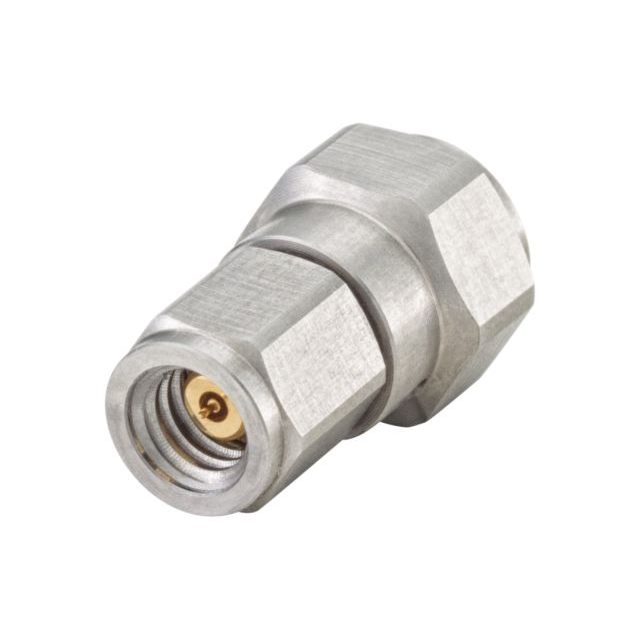

CONN ADAPT M-M RPC-1.35/RPC-1.00
| Part | Dielectric Material | Body Finish | Body Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Frequency - Max [Max] | Adapter Type | Conversion Type | Center Contact Plating | Center Gender | Adapter Series [Max] | Adapter Series [Min] | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polyetheretherketone (PEEK) | Gold | Beryllium Copper | Beryllium Copper | 85 °C | -40 C | Straight | 90 GHz | Plug to Plug | Between Series | Gold | Male to Male | RPC-1.35 | RPC-1.00 | Free Hanging (In-Line) | 1 mm | Plug Male Pin | 1.35mm Plug Male Pin |
