796639 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 17POS 5.08MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Header Orientation	Termination Style	Mounting Type	Color	Contact Mating Finish	Voltage - UL	Number of Levels	Pitch	Pitch	Number of Positions	Positions Per Level [custom]
TE Connectivity AMP Connectors 1-796639-7	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	17	90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in
TE Connectivity AMP Connectors 2-796639-1	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	21	90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in	21
TE Connectivity AMP Connectors 796639-7	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C		90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in	7	7
TE Connectivity AMP Connectors 2-796639-0	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	20	90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in	20

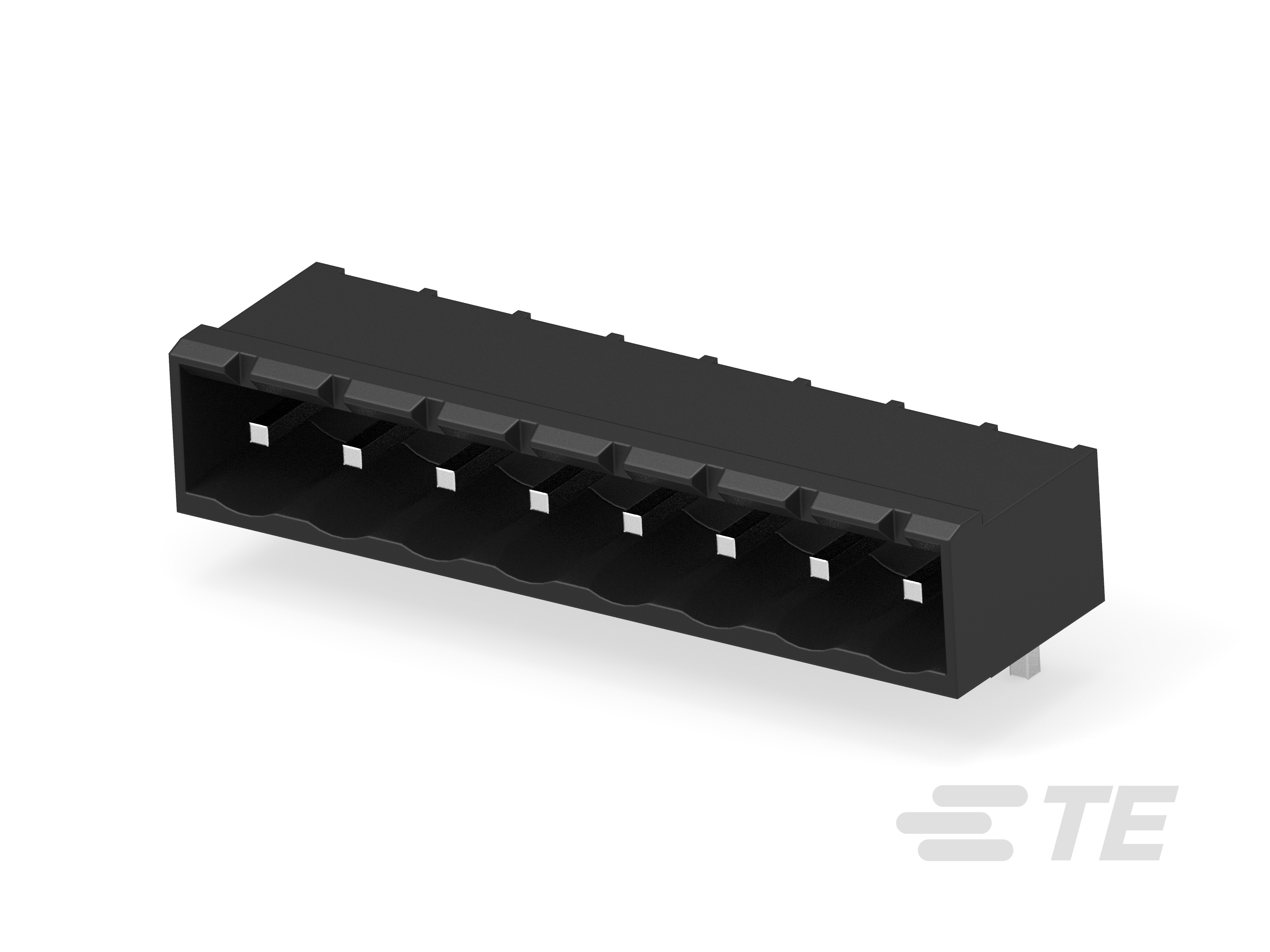

TE Connectivity AMP Connectors 796639-8	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	8	90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in	8

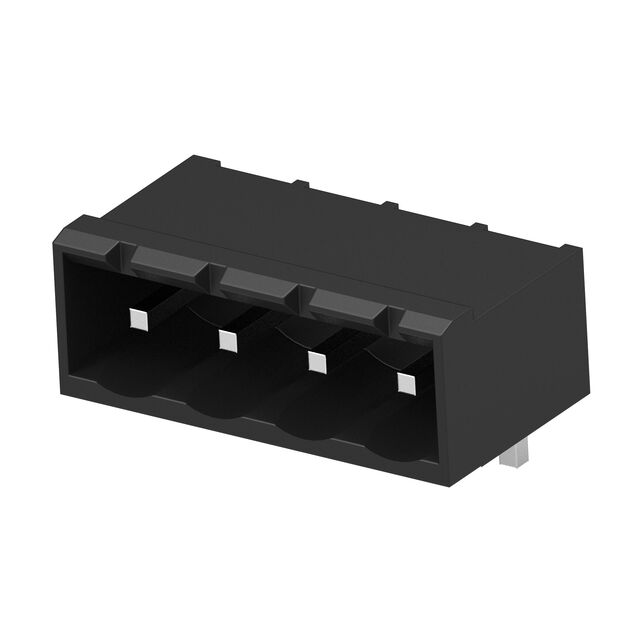

TE Connectivity AMP Connectors 796639-4	0.329 in	8.36 mm	Copper Alloy	0.138 in	3.5 mm	UL94 V-0	Header Male Pins Shrouded (4 Side)	-40 C	110 °C	4	90° Right Angle	Solder	Through Hole	Black	Tin	300 V	1	5.08 mm	0.2 in	4
