M50-393 Series
Manufacturer: Harwin Inc.
Beta
⌘K

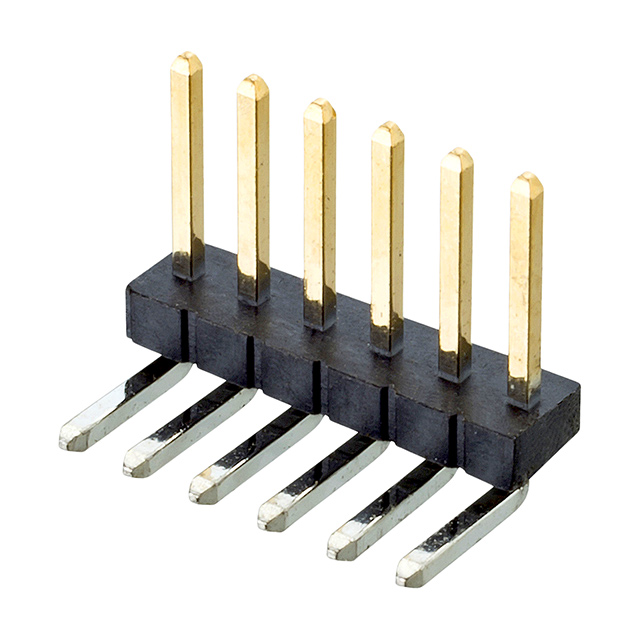

BTB CONN, HEADER, 6POS, 1ROWS, 1.27MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Style | Current Rating (Amps) | Fastening Type | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Finish - Post | Contact Type | Contact Finish - Mating | Termination | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Color | Number of Positions | Insulation Material | Material Flammability Rating | Shrouding | Number of Positions Loaded | Contact Material | Contact Length - Post | Contact Length - Post | Contact Shape | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -40 C | 105 ░C | Header | Board to Board Cable | 1 A | Push-Pull | 4 mm | 0.157 in | Right Angle Through Hole | Tin | Male Pin | Gold | Solder | 1.27 mm | 0.05 in | 1 | Black | 6 | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Unshrouded | All | Brass | 2.4 mm | 0.094 in | Square | 1 mm | 0.039 in | 2.5 µm | 98.4 µin |
 Harwin Inc. | -40 C | 105 ░C | Header | Board to Board Cable | 1 A | Push-Pull | 4 mm | 0.157 in | Right Angle Through Hole | Tin | Male Pin | Gold | Solder | 1.27 mm | 0.05 in | 1 | Black | 5 | Nylon 9T Polyamide (PA9T) | UL94 V-0 | Unshrouded | All | Brass | 2.4 mm | 0.094 in | Square | 1 mm | 0.039 in | 2.5 µm | 98.4 µin |
