320576 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

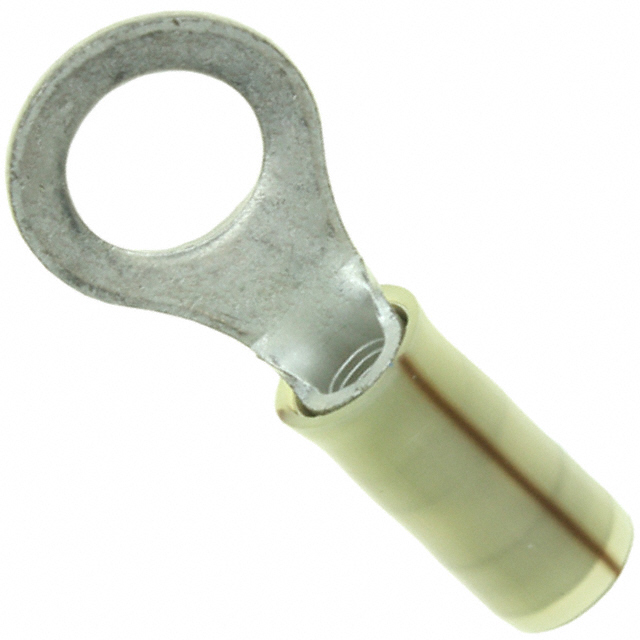

TERMINAL,PIDG R IR 12 5/16
| Part | Features | Contact Finish | Terminal Type | Stud/Tab Size | Mounting Type | Thickness | Thickness | Termination | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Wire Gauge | Material - Insulation | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Color | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Insulation Restriction Serrated Termination | Tin | Circular | 0.3125 Stud | Free Hanging (In-Line) | 0.04 in | 1.02 mm | Crimp | 0.095 " | 5.08 mm | 2.41 mm | 0.2 " | 12 AWG | Nylon Polyamide (PA) | 13.49 mm | 0.531 " | Yellow Yellow Stripe | Copper | 35.36 mm | 1.392 in | Insulated |
