031-8 Series

Catalog

CIRCULAR CONNECTOR CONTACT, POWER, TRIDENT SERIES, SOCKET, CRIMP, 12 AWG, 14 AWG

Part	Pin or Socket	Contact Finish	Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Type	Wire Gauge or Range - mm²	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - AWG	Termination Finish

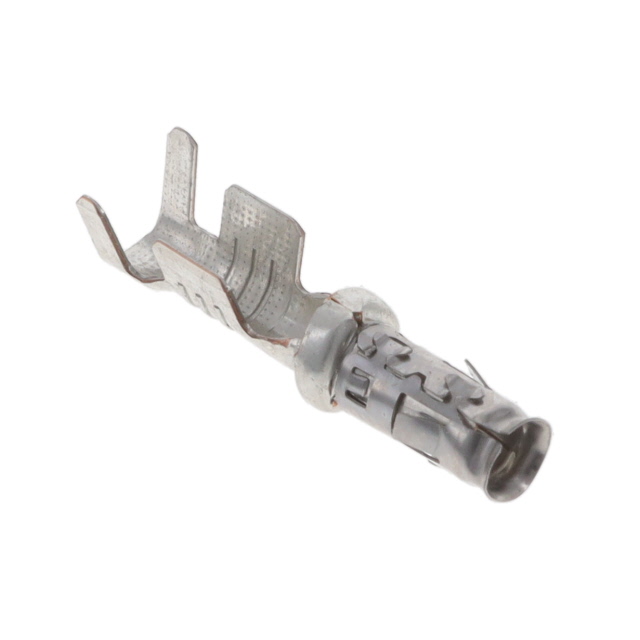

ITT Cannon, LLC 031-8717-122	Socket	Tin	Power Stamped	12 AWG	14 AWG	Crimp

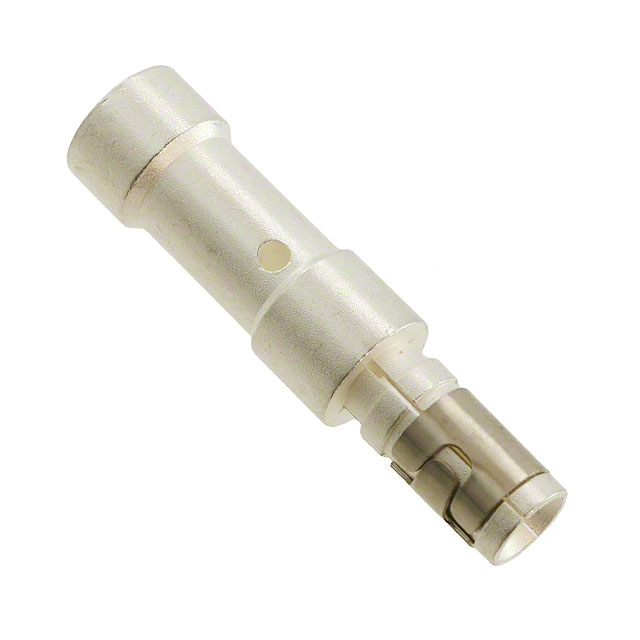

ITT Cannon, LLC 031-8646-010		Silver	Power Machined			Crimp	Socket	6 mm²	Copper Alloy
ITT Cannon, LLC 031-8556-130		Silver	Signal Machined			Crimp	Socket		Copper Alloy	22 AWG	26 AWG	16	0.38 mm²	0.14 mm²	5 µm	196.9 µin
ITT Cannon, LLC 031-8519-006		Gold	Signal Machined			Crimp	Socket		Copper Alloy			8			0.5 µm	19.7 µin	8 AWG

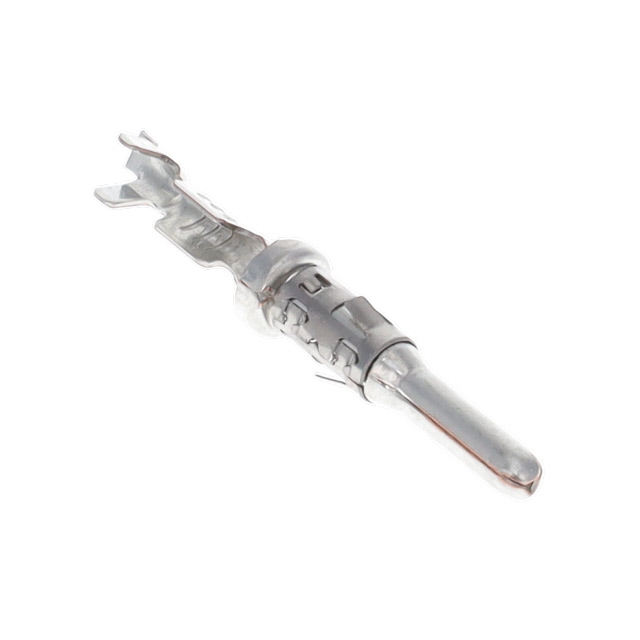

ITT Cannon, LLC 031-8717-020	Pin	Tin	Power Stamped	17.5 AWG	20 AWG	Crimp			Copper Alloy
ITT Cannon, LLC 031-8717-121		Tin	Power Stamped			Crimp	Socket			14 AWG	16 AWG		2.5 mm²	1.5 mm²				Tin

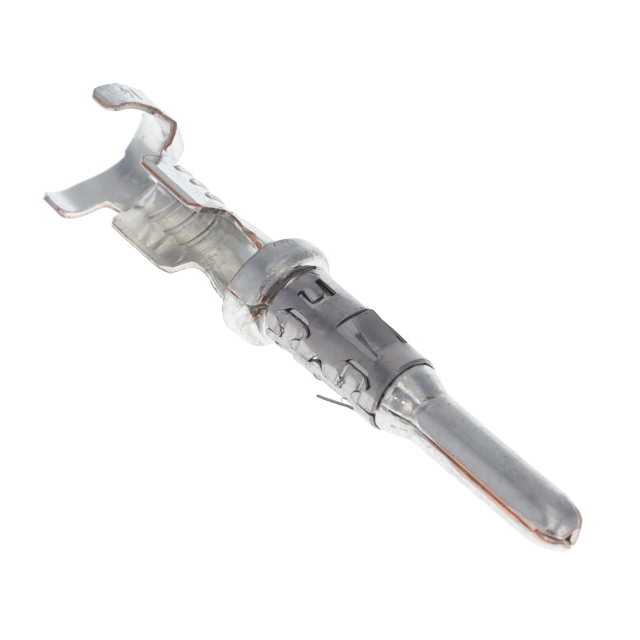

ITT Cannon, LLC 031-8717-047		Tin	Machined			Crimp	Pin		Copper Alloy	14 AWG	16 AWG		2.5 mm²	1.5 mm²
ITT Cannon, LLC 031-8521-000		Silver	Signal Machined			Crimp	Socket	50 mm²	Copper Alloy			0			5 µm	196.9 µin	0 AWG
ITT Cannon, LLC 031-8531-011		Silver	Power Machined			Crimp	Socket	25 mm²	Brass			0					4 AWG	Brass
ITT Cannon, LLC 031-8531-013		Silver	Power Machined			Crimp	Socket	50 mm²	Brass			0						Brass
