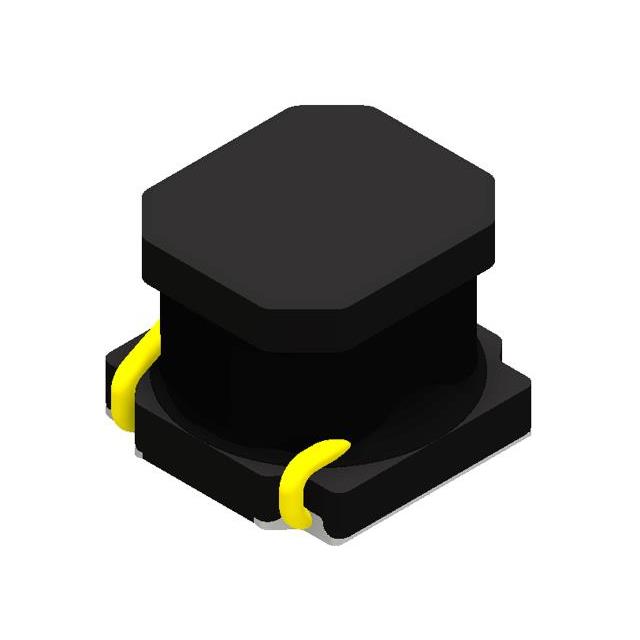

HPC 5040NV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 6.8UH 2.5A 0.043OHM SM
| Part | DC Resistance (DCR) | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Mounting Type | Shielding | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Inductance | Tolerance | Package / Case | Current - Saturation (Isat) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Material - Core | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 43 mOhm | 2.5 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 6.8 µH | 20 % | Nonstandard | 3.3 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 32 mOhm | 3.2 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 4.7 ÁH | 20 % | Nonstandard | 3.9 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 24 mOhm | 3.5 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 3.3 µH | 20 % | Nonstandard | 4.4 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 560 mOhm | 0.72 A | 0.157 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 100 µH | 20 % | Nonstandard | 750 mA | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | 4 mm | |
TAI-TECH Advanced Electronics Co., Ltd. | 12 mOhm | 5 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 1 µH | 20 % | Nonstandard | 7.5 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 21 mOhm | 3.8 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 2.2 µH | 20 % | Nonstandard | 5.7 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 56 mOhm | 2.2 A | 4.1 mm | 0.161 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 10 µH | 20 % | Nonstandard | 2.52 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | |
TAI-TECH Advanced Electronics Co., Ltd. | 123 mOhm | 1.5 A | 0.157 in | 100 kHz | Surface Mount | Shielded | AEC-Q200 | -55 C | 125 °C | 5040 | 22 µH | 20 % | Nonstandard | 1.62 A | 4.95 mm | 0.195 " | 4.95 mm | 0.195 in | Wirewound | Ferrite | 4 mm |
