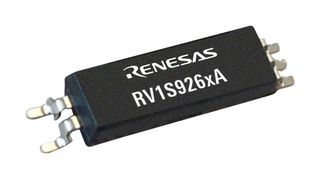

RV1S9262 Series

Catalog

HI-SPD OPTOCPLR, LSSO5, UL, CSA,

Part	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Typ)	Number of Channels [custom]	Input Type	Common Mode Transient Immunity (Min) [Min]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Data Rate	Current - DC Forward (If) (Max) [Max]	Output Type	Inputs - Side 1/Side 2 [custom]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output / Channel
Renesas Electronics Corporation RV1S9262ACCSP-10YV#KC0	5-LSSO	5-SMD Gull Wing	1.54 V	1	DC	100 V/ns	60 ns	60 ns	15 Mbps	20 mA	Push-Pull Totem Pole	1	Surface Mount	30 VDC	4.5 V	125 °C	-40 C	25 mA
Renesas Electronics Corporation RV1S9262ACCSP-10YV#SC0	5-LSSO	5-SMD Gull Wing	1.54 V	1	DC	100 V/ns	60 ns	60 ns	15 Mbps	20 mA	Push-Pull Totem Pole	1	Surface Mount	30 VDC	4.5 V	125 °C	-40 C	25 mA
Renesas Electronics Corporation RV1S9262ACCSP-10YC#SC0	5-LSSO	5-SMD Gull Wing	1.54 V	1	DC	100 V/ns	60 ns	60 ns	15 Mbps	20 mA	Push-Pull Totem Pole	1	Surface Mount	30 VDC	4.5 V	125 °C	-40 C	25 mA
