PEH200K Series

Manufacturer: KEMET

Catalog

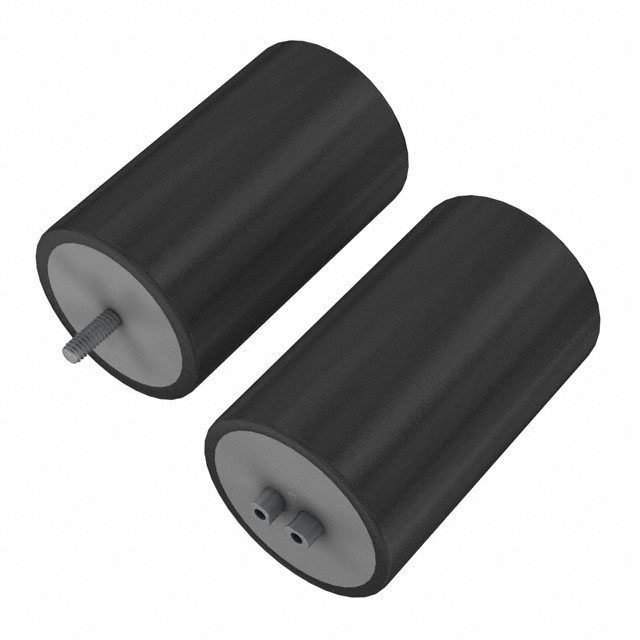

CAP ALUMINUM LYTIC 0.1F 40V 20% (66.6 X 109.2MM) STUD MOUNT SCREW 0.008 OHM 24.9A 15000H 85°C BAG

Part	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Impedance	Capacitance	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Lifetime @ Temp.	Mounting Type	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency
KEMET PEH200KO6100MB2	40 V	Radial Can - Screw Terminals	66.6 mm	2.622 in	Polar	General Purpose	4.213 in	107 mm	1.122 in	28.5 mm	8 mOhms	100000 µF	8 mOhm	85 °C	-40 C	20 %	15000 Hrs	Chassis Mount
KEMET PEH200KJ5470MU2	40 V	Radial Can - Screw Terminals		51.6 mm	Polar	General Purpose	3.799 in		1.122 in	28.5 mm		47 mF	8 mOhm	85 °C	-40 C	20 %	2000 Hrs	Chassis Mount	22.1 A	2.031 in	96.5 mm

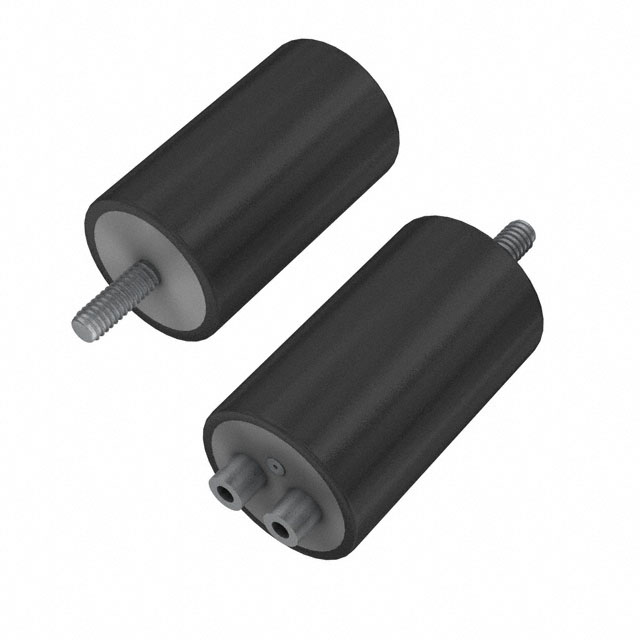

KEMET PEH200KA4680MU2	40 V	Radial Can - Screw Terminals		36.6 mm	Polar	General Purpose			0.512 "	13 mm		6800 µF	33 mOhm	85 °C	-40 C	20 %	10000 Hrs	Chassis Mount	9.9 A	1.441 in		51.5 mm	2.028 in	18.1 A
KEMET PEH200KB5100MB2	40 V	Radial Can - Screw Terminals		36.6 mm	Polar	General Purpose	2.382 in	60.5 mm	0.512 "	13 mm	18 mOhms	10000 µF	23 mOhm	85 °C	-40 C	20 %	10000 Hrs	Chassis Mount	12 A	1.441 in
KEMET PEH200KJ5470MB2	40 V	Radial Can - Screw Terminals		51.6 mm	Polar	General Purpose			1.122 in	28.5 mm		47 mF	8 mOhm	85 °C	-40 C	20 %	12000 Hrs	Chassis Mount	22.1 A	2.031 in		95.5 mm	3.76 in
