Power Triple Lock Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER TO THE BOARD 2X5 PLUG HOUSING LGR KEY A

Part	Note	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Termination	Mounting Type	Insulation Material	Pitch	Pitch	Color	Number of Rows [custom]	Contact Type	Number of Positions	Pin or Socket	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	For Use With/Related Products	Number of Rows	Features
TE Connectivity AMP Connectors 5-1971776-5	Contacts Not Included	Plug	Latch Holder	-55 C	150 °C	0.319 in	8.1 mm	Crimp	Free Hanging (In-Line)	Nylon Polyamide (PA)	6 mm	0.236 in	Gray	2	Female Blade Socket	10
TE Connectivity AMP Connectors 1971784-2								Crimp									Tab	Tin	16 AWG	22 AWG

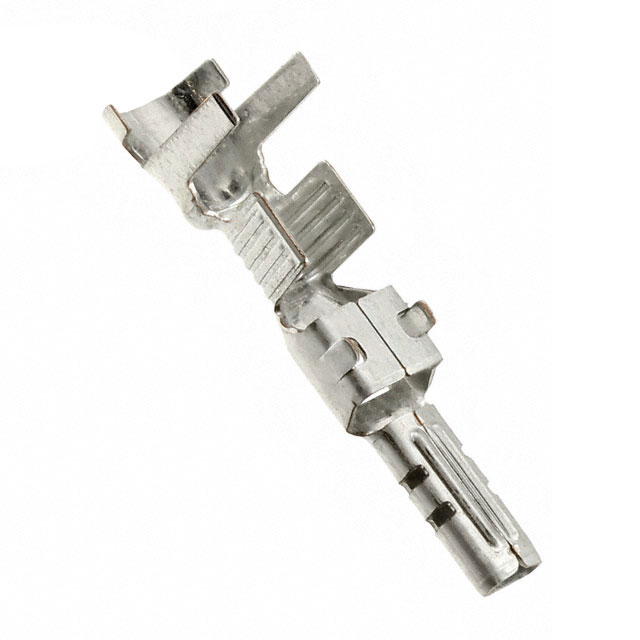

TE Connectivity AMP Connectors 1971788-1								Crimp									Tab	Tin			18 AWG
TE Connectivity AMP Connectors 1971778-5																10						Power Triple Lock Series
TE Connectivity AMP Connectors 1971778-6																12						Power Triple Lock Series
TE Connectivity AMP Connectors 5-2232356-7		Receptacle	Latch Lock	-55 C	105 ░C	0.319 in	8.1 mm	Crimp	Panel Mount Snap-In	Glass Filled Nylon 6 Polyamide (PA6)	6 mm	0.236 in	Gray	3	Tab	15

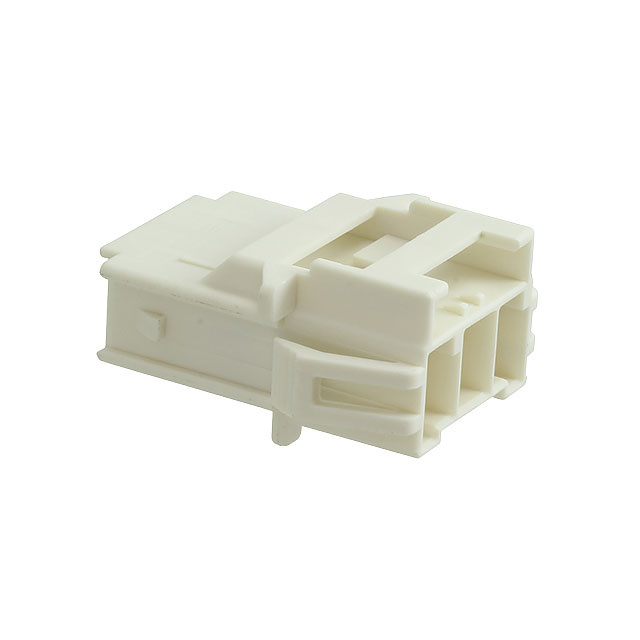

TE Connectivity AMP Connectors 5-2232353-3	Contacts Not Included	Receptacle	Latch Holder	-55 C	105 ░C			Crimp	Panel Mount Snap-In	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Natural		Tab								1
TE Connectivity AMP Connectors 6-2232264-5		Receptacle	Latch Lock	-55 C	105 ░C	0.319 in	8.1 mm	Crimp	Panel Mount Snap-In	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Brown	2	Tab	10								Glow Wire Compliant
TE Connectivity AMP Connectors 6-2232356-3		Plug	Latch Holder	-55 C	105 ░C	0.319 in	8.1 mm	Crimp	Through Hole	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Brown	3	Male Pin	9								Cap (Cover)
TE Connectivity AMP Connectors 1971782-1								Crimp									Tab	Tin			14.5 AWG
