3210 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SPADE TERM 22-26AWG #4 YEL

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Terminal Type	Insulation	Features	Mounting Type	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Color	Termination	Contact Finish	Length - Overall	Length - Overall	Length - Overall [x]	Length - Overall [x]	Thickness [custom]	Thickness [custom]	Wire Gauge	Stud/Tab Size	Thickness	Thickness	Number of Wire Entries
TE Connectivity Raychem Cable Protection 321035	3.02 mm	0.119 in	0.082 "	2.08 mm	0.05 in	1.27 mm	0.203 in	5.16 mm	0.331 in	8.41 mm	Nylon Polyamide (PA)	0.211 in	5.36 mm	4 Stud	Standard	Insulated	Serrated Termination	Free Hanging (In-Line)	Copper	22 AWG	26 AWG	Yellow	Crimp	Tin	15.93 mm	0.627 in
TE Connectivity Raychem Cable Protection 321020			0.082 "	2.08 mm	0.05 in	1.27 mm	0.25 "	6.35 mm			Poly-Vinyl Chloride (PVC)			6 Stud	Circular	Insulated	Serrated Termination	Free Hanging (In-Line)	Copper	22 AWG	26 AWG	Yellow	Crimp	Tin			18.8 mm	0.74 in	0.46 mm	0.018 in

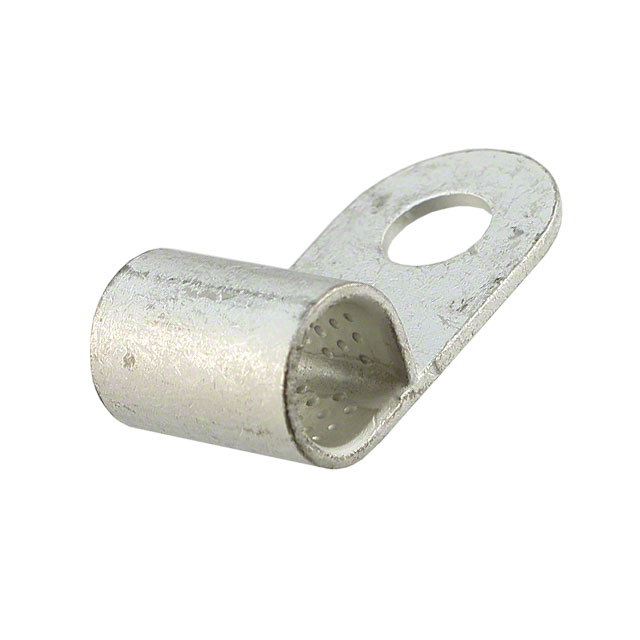

TE Connectivity Raychem Cable Protection 321066							0.875 in	22.23 mm							Circular	Non-Insulated	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	Copper				Crimp Flag	Tin			44.02 mm	1.733 in			44 AWG	3/8 Stud	1.78 mm	0.07 in

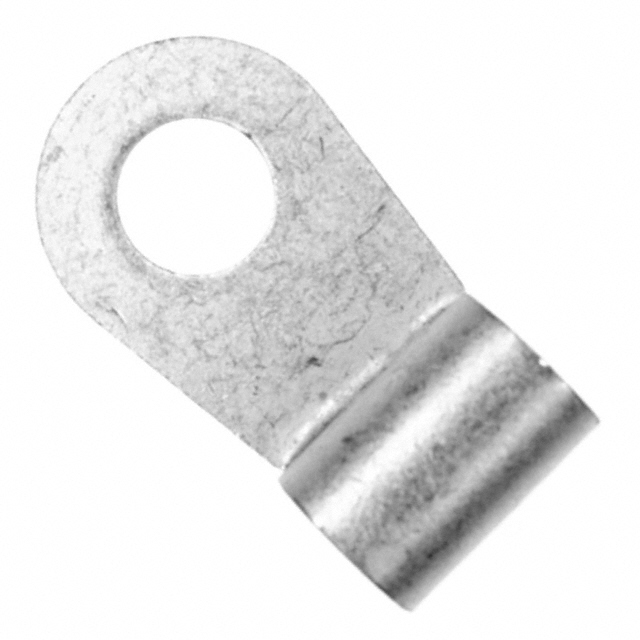

TE Connectivity Raychem Cable Protection 321060							0.546 in	13.87 mm						0.3125 Stud	Circular	Non-Insulated	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	Copper				Crimp Flag	Tin			32.46 mm	1.278 in			4 AWG		1.22 mm	0.048 in
TE Connectivity Raychem Cable Protection 321063							0.713 "	18.11 mm						10 Stud	Circular	Non-Insulated	Brazed Seam Serrated Termination	Free Hanging (In-Line) Right Angle	Copper				Crimp Flag	Tin			36.5 mm	1.437 in			2 AWG		1.45 mm	0.057 in

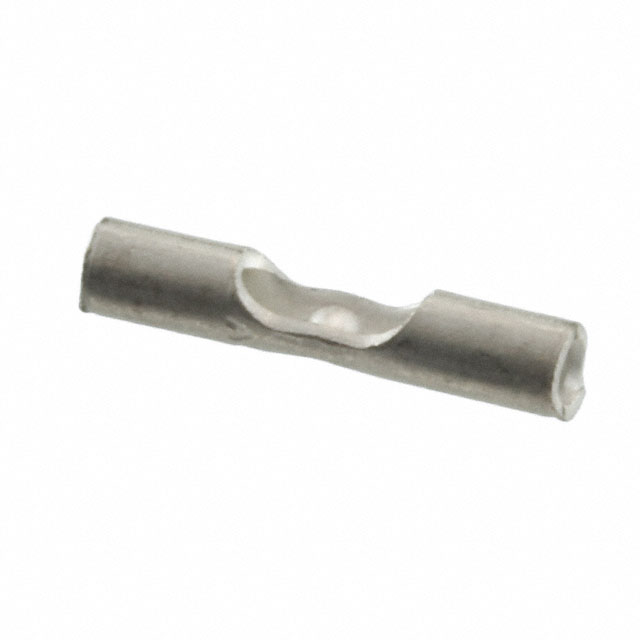

TE Connectivity Raychem Cable Protection 321024															Butt Splice Individual Openings Inline	Non-Insulated	Serrated Mating Area			22 AWG	26 AWG		Crimp												2
TE Connectivity Raychem Cable Protection 321015			0.082 "	2.08 mm	0.05 in	1.27 mm	0.203 in	5.16 mm			Poly-Vinyl Chloride (PVC)			2 Stud	Circular	Insulated	Serrated Termination	Free Hanging (In-Line)	Copper	22 AWG	26 AWG	Yellow	Crimp	Tin			16.4 mm	0.646 in	0.46 mm	0.018 in
