2506-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

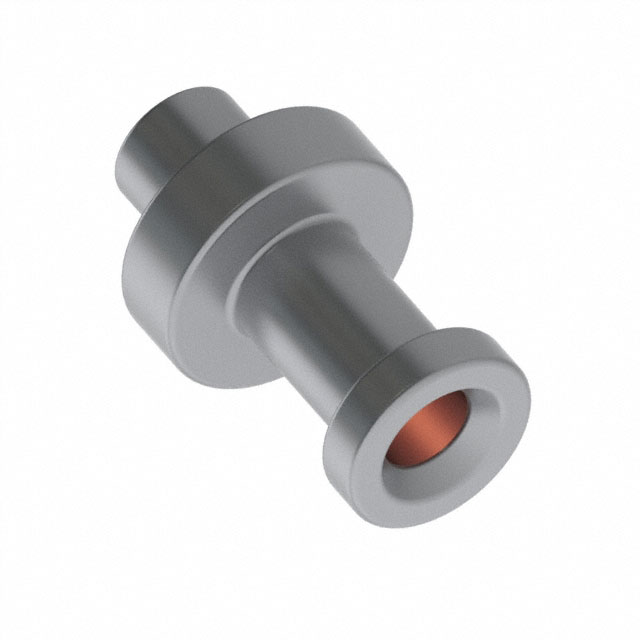

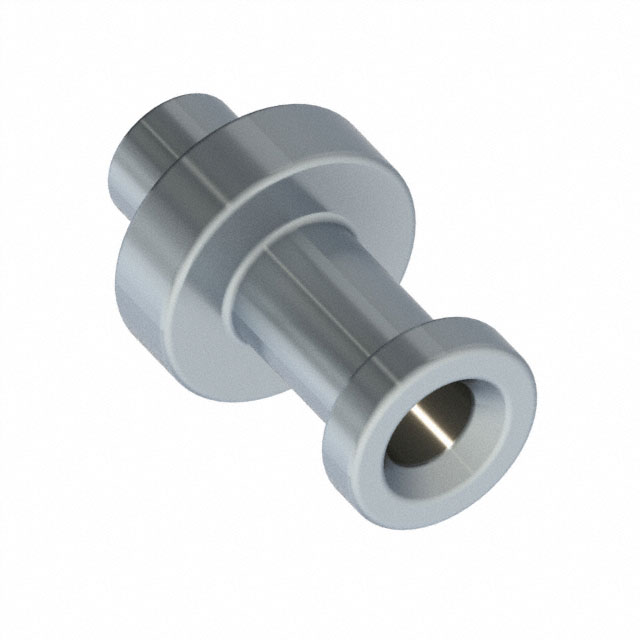

TERM TURRET SINGLE L=3.96MM
| Part | Termination | Insulation | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Board Thickness | Board Thickness | Contact Material | Length - Overall [x] | Length - Overall [x] | Number of Turrets | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Staking Side ID | Staking Side ID | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Staking Side OD [diameter] | Staking Side OD [diameter] | Contact Finish | Length - Above Board | Length - Above Board | Flange Diameter | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Swage | Non-Insulated | 2.36 mm | 0.093 in | 0.031 in | 0.79 mm | Brass Alloy | 5.31 mm | 0.209 in | Single | 1.7 mm | 0.067 " | Single End | 0.043 in | 1.09 mm | 200 Áin | 5.08 Ám | Through Hole | 1.57 mm | 0.062 in | Tin-Lead | 3.96 mm | 0.156 in | 3.18 mm | 0.125 in | 0.053 in | 1.35 mm |
 Mill-Max Manufacturing Corp. | Swage | Non-Insulated | 2.36 mm | 0.093 in | 0.031 in | 0.79 mm | Brass Alloy | 5.31 mm | 0.209 in | Single | 1.7 mm | 0.067 " | Single End | 0.043 in | 1.09 mm | 300 µin | 7.62 µm | Through Hole | 1.57 mm | 0.062 in | Silver | 3.96 mm | 0.156 in | 3.18 mm | 0.125 in | 0.053 in | 1.35 mm |
