GB20S12 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

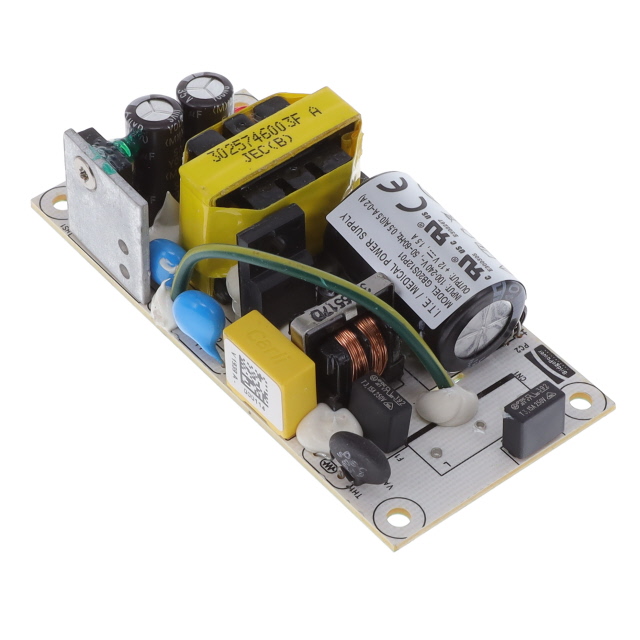

AC/DC CONVERTER 12V 18W
| Part | Minimum Load Required | Approval Agency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Mounting Type | Voltage - Isolation | Current - Output 1 | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Features | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | CE cURus UL | 1 | 70 °C | -25 °C | 12 V | 88 % | Chassis Mount | 4000 V | 1.5 A | Open Frame | 85.9 mm | 1.6 in | 25.4 mm | 3.38 in | 40.6 mm | 1 in | 100 VAC | 240 VAC | ITE (Commercial) Medical | Universal Input | ||
 SL POWER / Advanced Energy | CE cURus DEMKO | 1 | 70 °C | -25 °C | 12 V | 88 % | Chassis Mount | 4000 V | 1.5 A | Open Frame | 82 mm | 1.57 " | 20.5 mm | 3.23 in | 39.9 mm | 0.81 in | 90 VAC | 264 VAC | ITE (Commercial) Medical | Universal Input | 60601-1; 62368-1 |
