DC3331601 Series
Manufacturer: SAB North America
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

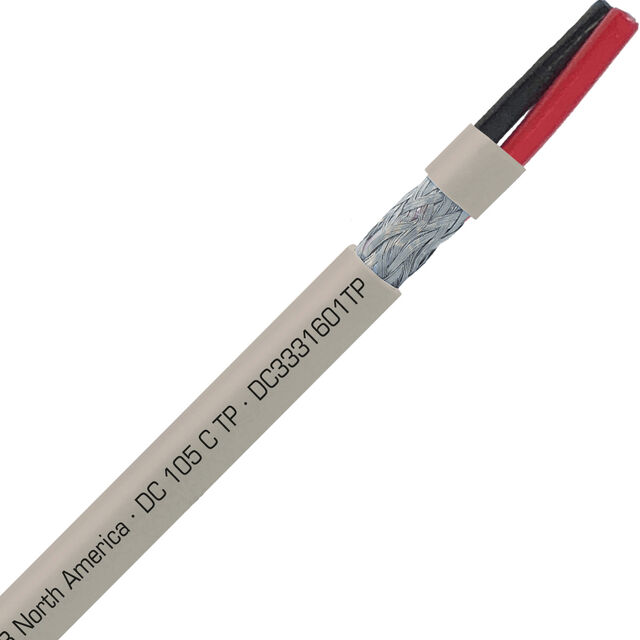

MULTI-PAIR 2COND 16AWG GRY 1=1FT
| Part | Jacket Color | Number of Conductors | Conductor Arrangement | Number of Conductors - Pair | Length | Cable Type | Jacket (Insulation) Diameter | Wire Gauge | Jacket (Insulation) Material | Usage | Conductor Material | Shield Type | Voltage | Ratings | Conductor Strand Gauge | Conductor Strand Count | Operating Temperature (Max) | Operating Temperature (Min) | Conductor Insulation | Features | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SAB North America | Gray Tan | 2 | Twisted | 1 | Enter Number of Feet in Order Quantity | Multi-Pair | 0.32 in | 16 AWG | Poly-Vinyl Chloride (PVC) | Control Industrial Signal | Copper Tinned | Braid Foil | 300 V | CMG Style UL | 30 AWG | 26 | 105 °C | -25 °C | Nylon Poly-Vinyl Chloride (PVC) | Flame Retardant Oil Resistant | Copper Tinned |
