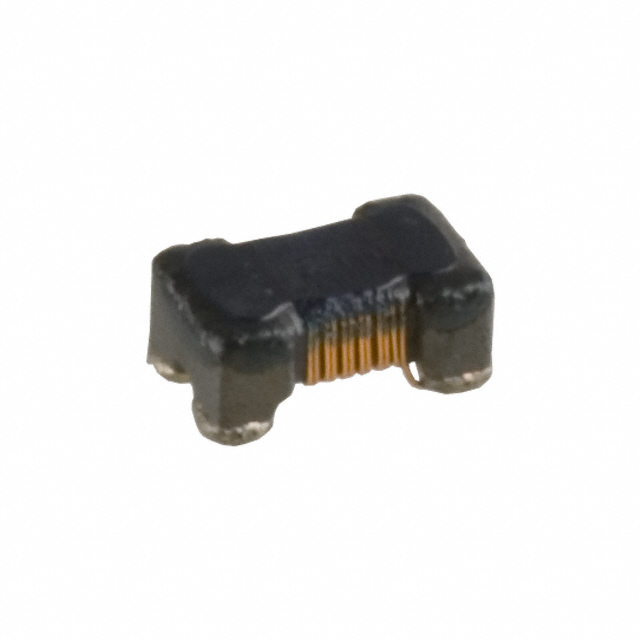

DLW21HN Series

Catalog

CMC 200MA 2LN 120 OHM SMD

Part	Mounting Type	Package / Case	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Current Rating (Max) [Max]	Filter Type	Impedance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	DC Resistance (DCR) (Max) [Max]
Murata Electronics DLW21HN121HQ2L	Surface Mount	Horizontal 4 PC Pad	0.039 in	1 mm	0.079 in	0.047 in	1.2 mm	2 mm	20 V	200 mA	Signal Line	120 Ohms	85 °C	-40 C	2	680 mOhm
Murata Electronics DLW21HN181SQ2L	Surface Mount	Horizontal 4 PC Pad	0.039 in	1 mm	0.079 in	0.047 in	1.2 mm	2 mm	50 VDC	250 mA	Signal Line	180 Ohms	85 °C	-40 C	2	500 mOhm
Murata Electronics DLW21HN670SQ2L	Surface Mount	Horizontal 4 PC Pad	0.039 in	1 mm	0.079 in	0.047 in	1.2 mm	2 mm	50 VDC	330 mA	Signal Line	67 Ohms	85 °C	-40 C	2	350 mOhm
