GS-111 Series
Manufacturer: CW Industries
Beta
⌘K

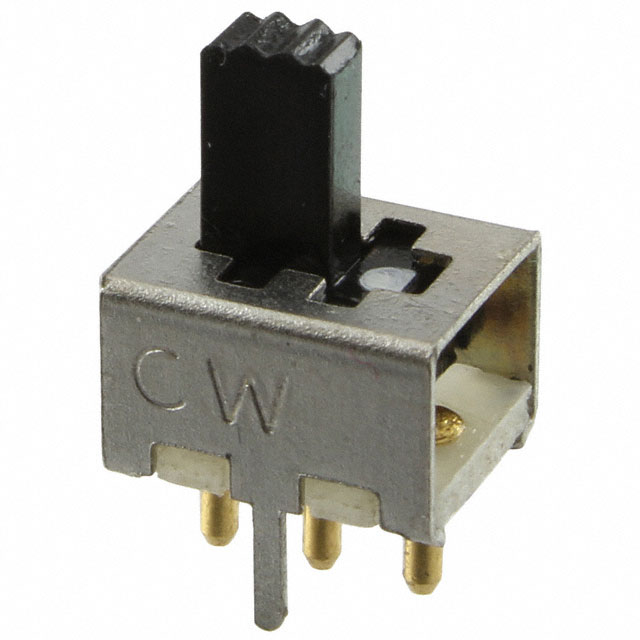

SWITCH SLIDE SPDT 500MA 125V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Length [x] | Contact Timing | Contact Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Mounting Type | Voltage Rating - AC | Circuit | Voltage Rating - DC | Current Rating (Amps) | Actuator Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 2.67 mm | 5.59 mm | Not Specified | Silver | Copper Alloy | -10 °C | 104 °C | On-On | Through Hole | 125 V | SPDT | 125 VDC | 500 mA | Standard | PC Pin |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 2.67 mm | 8.69 mm | Not Specified | Silver | Copper Alloy | -10 °C | 104 °C | On-On | Through Hole | 125 V | SPDT | 125 VDC | 500 mA | Standard | PC Pin |
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 2.67 mm | 6.35 mm | Not Specified | Silver | Copper Alloy | -10 °C | 104 °C | On-On | Through Hole | 125 V | SPDT | 125 VDC | 500 mA | Standard | PC Pin |
