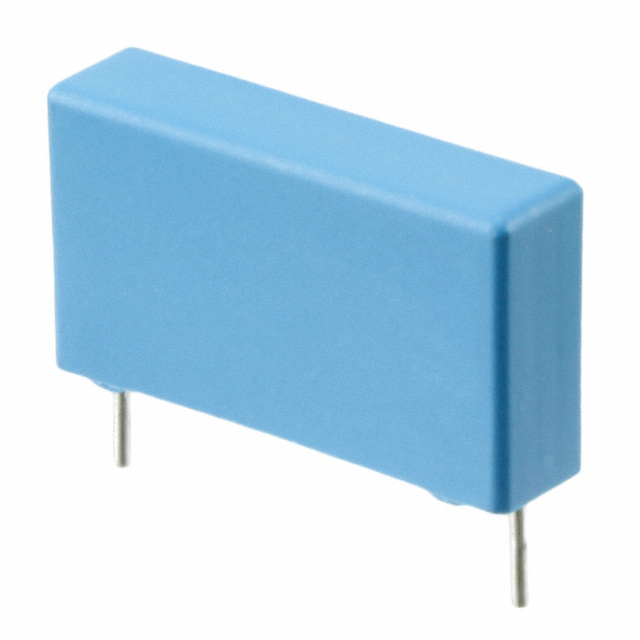

PHE450 Series

Manufacturer: KEMET

Catalog

Catalog

CAP FILM 0.1UF 5% 400VDC RADIAL

...

Part	Termination	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Applications	Capacitance	Voltage Rating - DC	Lead Spacing	Lead Spacing	Tolerance	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET PHE450KB6100JR17	PC Pins	Through Hole	250 V	-55 C	105 ░C	Radial	0.492 in	12.5 mm	18 mm	0.256 "	0.709 in	6.5 mm	Polypropylene (PP) Metallized	High Frequency Switching	100000 pF	400 V	15 mm	0.591 in	5 %
KEMET PHE450SD5560JR06L2	PC Pins	Through Hole	700 V	-55 C	105 ░C	Radial			26 mm	0.413 in	1.024 in	10.5 mm	Polypropylene (PP) Metallized	High Frequency Switching	56000 pF	2 kVDC	22.5 mm	0.886 in	5 %	2 kV	0.748 in	19 mm
KEMET PHE450KK5270JR05
KEMET PHE450KA5270JR05
KEMET PHE450KK4470JR05	PC Pins	Through Hole	250 V	-55 C	105 ░C	Radial	8 mm		10 mm	0.157 "	0.394 in	4 mm	Polypropylene (PP) Metallized	High Frequency Switching	0.0047 µF	400 V	7.5 mm	0.295 in	5 %				0.315 in
KEMET PHE450HB6330JR06
KEMET PHE450PB4820JR06	PC Pins	Through Hole	600 V	-55 C	105 ░C	Radial	10.5 mm		18 mm	0.217 in	0.709 in	5.5 mm	Polypropylene (PP) Metallized	High Frequency Switching		1 kVDC	15 mm	0.591 in	5 %	1 kV			0.413 "
KEMET PHE450KK3820JR05	PC Pins	Through Hole	250 V	-55 C	105 ░C	Radial	8 mm		10 mm	0.157 "	0.394 in	4 mm	Polypropylene (PP) Metallized	High Frequency Switching	820 pF	400 V	7.5 mm	0.295 in	5 %				0.315 in
KEMET PHE450MK4560JR05	PC Pins	Through Hole	300 V	-55 C	105 ░C	Radial	8 mm		10 mm	0.157 "	0.394 in	4 mm	Polypropylene (PP) Metallized	High Frequency Switching	0.0056 µF		7.5 mm	0.295 in	5 %				0.315 in
KEMET PHE450PK3560JR05	PC Pins	Through Hole	600 V	-55 C	105 ░C	Radial	8 mm		10 mm	0.157 "	0.394 in	4 mm	Polypropylene (PP) Metallized	High Frequency Switching	560 pF	1 kVDC	7.5 mm	0.295 in	5 %	1 kV			0.315 in
