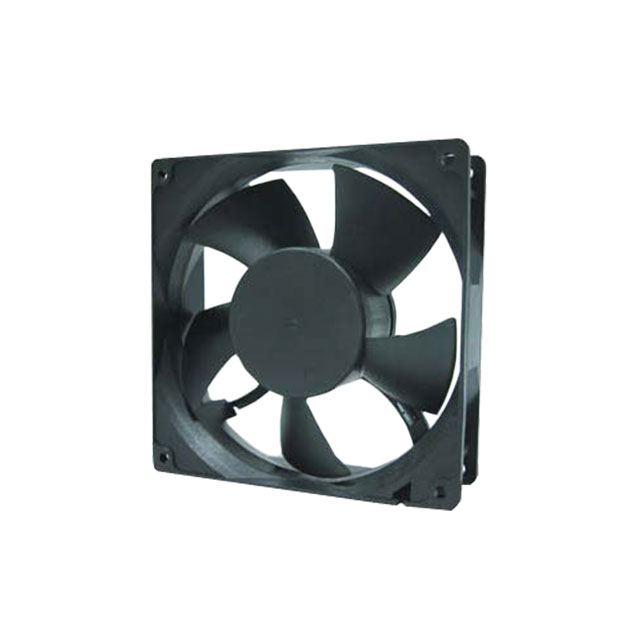

FAN AXIAL 127X38.5MM 24VDC WIRE
| Part | Material - Frame | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Weight | Weight | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Air Flow | Air Flow | Width [y] | Size / Dimension [z] | Size / Dimension [x] | RPM | Noise | Fan Type | Voltage - Rated | Power (Watts) | Termination | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Plastic | 0.5 A | 26.4 VDC | 21.6 VDC | Plastic | 370.13 g | 0.816 lb | Ball | 70 °C | -10 °C | CE cURus TUV | 5.4 mł/min | 193 CFM | 38.5 mm | 5 in | 5 " | 3500 RPM | 56 dB | Tubeaxial | 24 VDC | 12 W | 2 Wire Leads | 0.46 in H2O | 114.6 Pa |
Qualtek | Plastic | 0.94 A | 26.4 VDC | 21.6 VDC | Plastic | 370.13 g | 0.816 lb | Ball | 70 °C | -10 °C | CE cURus TUV | 6.33 m³/min | 226 CFM | 38.5 mm | 5 in | 5 " | 4100 RPM | 62 dB(A) | Tubeaxial | 24 VDC | 22.6 W | 2 Wire Leads | 0.55 in H2O | 137 Pa |
Qualtek | Plastic | 1.95 A | 13.2 VDC | 10.8 VDC | Plastic | 370.13 g | 0.816 lb | Ball | 70 °C | -10 °C | CE cURus TUV | 6.33 m³/min | 226 CFM | 38.5 mm | 5 in | 5 " | 4100 RPM | 62 dB(A) | Tubeaxial | 12 VDC | 23.4 W | 2 Wire Leads | 0.55 in H2O | 137 Pa |
