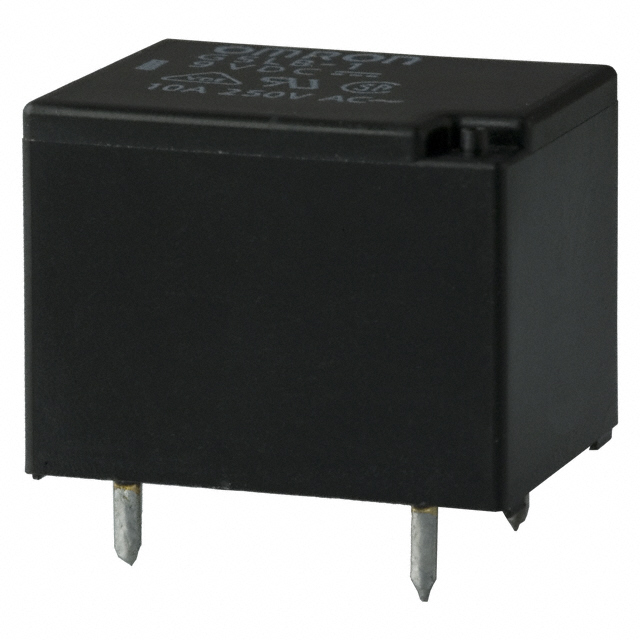

G5LB-1-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 12V
| Part | Coil Resistance | Release Time | Must Operate Voltage | Mounting Type | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Operate Time | Coil Current | Load - Max Switching | Contact Material | Must Release Voltage | Approval Agency | Coil Type | Coil Insulation | Contact Form | Relay Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 390 Ohms | 5 ms | 9 VDC | Through Hole | PC Pin | 10 A | 85 °C | -40 °C | 125 VDC 250 VAC | 10 ms | 30.7 mA | 1250 W 2500 VA | Silver Tin Oxide (AgSnO) | 1.2 VDC | CSA UR VDE | Non Latching | Class B | SPDT (1 Form C) | General Purpose | 12 VDC |
Omron Electronics Inc-EMC Div | 69 Ohms | 5 ms | 3.75 VDC | Through Hole | PC Pin | 10 A | 85 °C | -40 °C | 125 VDC 250 VAC | 10 ms | 72 mA | 1250 W 2500 VA | Silver Tin Oxide (AgSnO) | 0.5 VDC | CSA UR VDE | Non Latching | Class B | SPDT (1 Form C) | General Purpose | 5 VDC |
Omron Electronics Inc-EMC Div | 1.6 kOhms | 5 ms | 18 VDC | Through Hole | PC Pin | 10 A | 85 °C | -40 °C | 125 VDC 250 VAC | 10 ms | 15.2 mA | 1250 W 2500 VA | Silver Tin Oxide (AgSnO) | 2.4 VDC | CSA UR VDE | Non Latching | Class B | SPDT (1 Form C) | General Purpose | 24 VDC |
