SIT1552 Series

Manufacturer: SiTime

Catalog

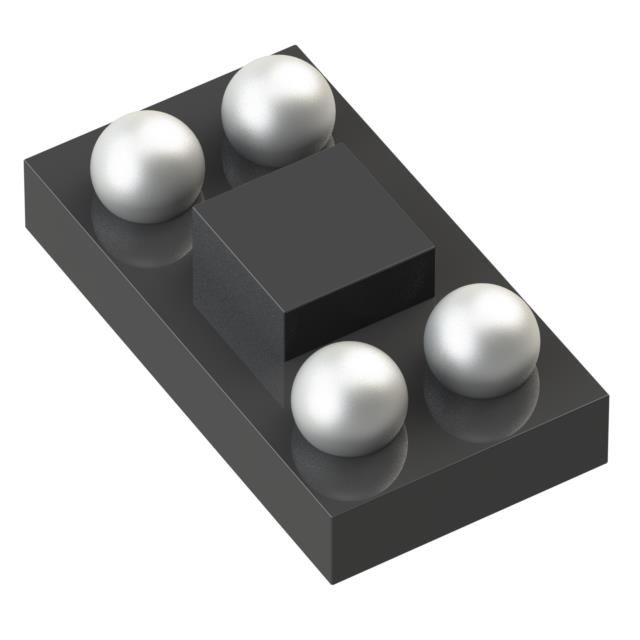

MEMS OSC TCXO 32.7680KHZ LVCMOS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Mounting Type	Base Resonator	Output	Current - Supply (Max) [Max]	Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability
SiTime SIT1552AI-JE-DCC-32.768G	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
SiTime SIT1552AI-J1-DCC-32.768E	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	20 ppm
SiTime SIT1552AI-JF-DCC-32.768E	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS		TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	10 ppm
SiTime SIT1552AI-JF-DCC-32.768D	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS		TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	10 ppm
SiTime SIT1552AI-JE-DCC-32.768D	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
SiTime SIT1552AC-JE-DCC-32.768D	70 °C	0 °C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS		TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
SiTime SIT1552AI-J1-DCC-32.768D	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	20 ppm
SiTime SIT1552AC-JE-DCC-32.768G	70 °C	0 °C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	0.99 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
SiTime SIT1552AI-JE-D14-32.768E	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS		1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
SiTime SIT1552AI-JE-DCC-32.768S	85 °C	-40 C	0.6 mm	0.024 in	0.032768 MHz	0.84 mm	1.54 mm	0.061 in	0.033 "	1.54	0.84	4-CSP	Surface Mount	MEMS	LVCMOS	1.52 µA	TCXO	4-UFBGA CSPBGA	3.63 V	1.5 V	5 ppm
