05K132 Series
Manufacturer: Rosenberger
Beta
⌘K

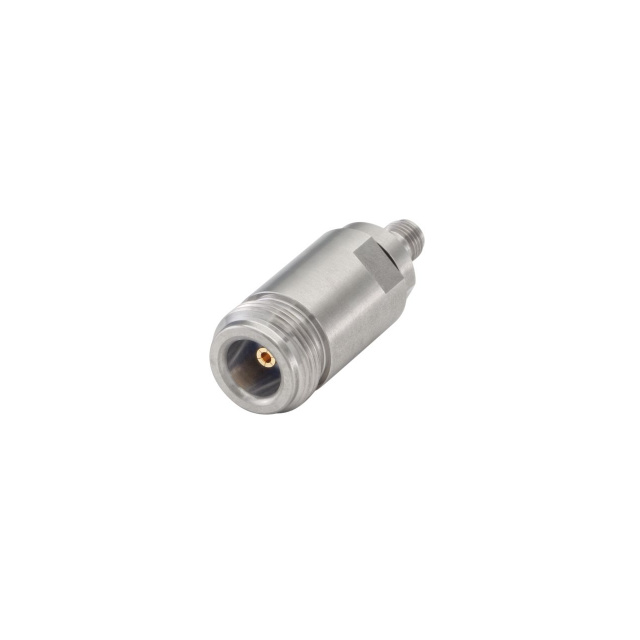

COAX ADAPT RPC-N TO SMA
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Body Material | Insertion Loss | Adapter Series | Impedance | Frequency - Max [Max] | Convert To (Adapter End) | Center Contact Plating | Style | Conversion Type | Adapter Type | Center Gender | Convert From (Adapter End) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 500 | 85 °C | -40 C | Beryllium Copper | Stainless Steel | 0.42 dB | RPC-N to SMA | 50 Ohms | 18 GHz | SMA Jack Female Socket | Gold | Straight | Between Series | Jack to Jack | Female to Female | Female Socket N Jack | Free Hanging (In-Line) |
Rosenberger | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 500 | 85 °C | -40 C | Beryllium Copper | Stainless Steel | 0.42 dB | RJC-N to SMA | 50 Ohms | 18 GHz | SMA Plug Male Pin | Gold | Straight | Between Series | Plug to Jack | Female Socket N Jack | Free Hanging (In-Line) |
