R60QF Series
Manufacturer: KEMET
Beta
⌘K

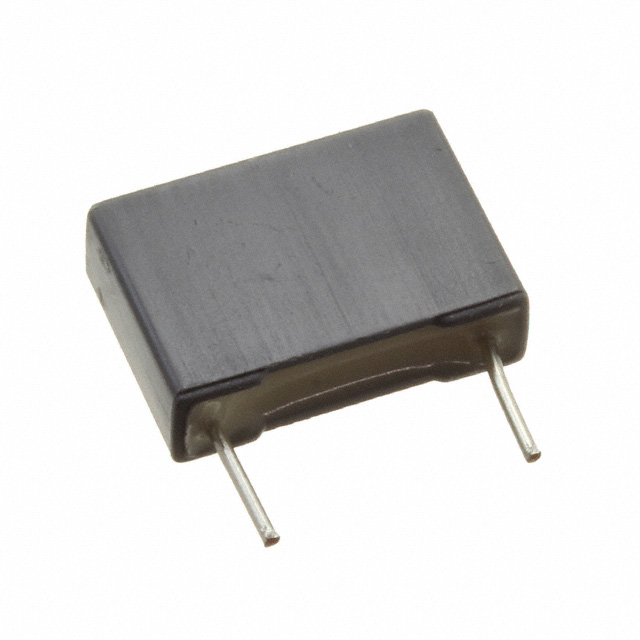

CAP FILM 3300PF 10% 1KVDC RADIAL
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Ratings | Voltage Rating - AC | Mounting Type | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Dielectric Material | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Capacitance | Termination | Applications | Voltage Rating - DC | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.358 in | 9.1 mm | AEC-Q200 | 250 V | Through Hole | 10 % | 13 mm | 4 mm | 0.512 " | 0.157 " | Polyester Metallized | Radial | -55 C | 105 ░C | 0.394 in | 10 mm | 0.0033 µF | PC Pins | Automotive | 1 kV | 1 kVDC |
 KEMET | 0.358 in | 9.1 mm | AEC-Q200 | 250 V | Through Hole | 10 % | 13 mm | 4 mm | 0.512 " | 0.157 " | Metallized Polyester Polyethylene Terephthalate (PET) | Radial | -55 C | 105 ░C | 0.394 in | 10 mm | 1500 pF | PC Pins | Automotive | 1 kV | 1 kVDC |
 KEMET | 0.358 in | 9.1 mm | AEC-Q200 | 250 V | Through Hole | 5 % | 13 mm | 4 mm | 0.512 " | 0.157 " | Metallized - Stacked Polyester Polyethylene Terephthalate (PET) | Radial | -55 C | 105 ░C | 0.394 in | 10 mm | 2200 pF | PC Pins | Automotive | 1 kV | 1 kVDC |
KEMET | 0.358 in | 9.1 mm | AEC-Q200 | 250 V | Through Hole | 10 % | 13 mm | 4 mm | 0.512 " | 0.157 " | Metallized Polyester Polyethylene Terephthalate (PET) | Radial | -55 C | 105 ░C | 0.394 in | 10 mm | 0.0033 µF | PC Pins | Automotive | 1 kV | 1 kVDC |
