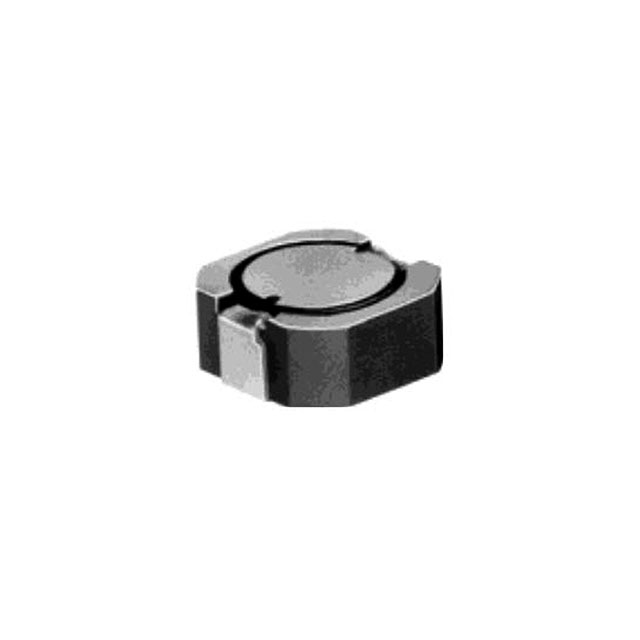

B1179BS Series

Catalog

FIXED IND 10UH 3.6A 31 MOHM SMD

Part	Type	Shielding	Current Rating (Amps)	Current - Saturation (Isat)	Supplier Device Package	Inductance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Package / Case	Material - Core	Tolerance	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)
Murata Electronics B1179BS-100M=P3	Drum Core Wirewound	Shielded	3.6 A	4.2 A	2-SMD	10 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %	31 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-2R2N=P3	Drum Core Wirewound	Shielded	6.9 A	8.4 A	2-SMD	2.2 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	30 %	9.4 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-3R8N=P3	Drum Core Wirewound	Shielded	5.4 A	6.4 A	2-SMD	3.8 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	30 %	16 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-680M=P3	Drum Core Wirewound	Shielded	1.3 A	1.6 A	2-SMD	68 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %	190 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-3R3N=P3	Drum Core Wirewound	Shielded	6 A		2-SMD	3.3 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	30 %	13 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-220M=P3	Drum Core Wirewound	Shielded	2.3 A	2.7 A	2-SMD	22 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	74 mOhm
Murata Electronics B1179BS-330M=P3	Drum Core Wirewound	Shielded	1.8 A	2.2 A	2-SMD	33 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	100 mOhm
Murata Electronics B1179BS-101M=P3	Drum Core Wirewound	Shielded	1.1 A	1.3 A	2-SMD	100 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	290 mOhm
Murata Electronics B1179BS-470M=P3	Drum Core Wirewound	Shielded	1.6 A	1.9 A	2-SMD	47 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	20 %	140 mOhm	100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm
Murata Electronics B1179BS-6R8N=P3	Drum Core Wirewound	Shielded	4.1 A	5 A	2-SMD	6.8 µH	Surface Mount	85 °C	-40 C	4 mm	0.157 in	Nonstandard	Ferrite	30 %		100 kHz	10.4 mm	0.409 in	0.409 in	10.4 mm	24 mOhm
