M80-813 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,RECEPT,12 CONTACTS,PIN,0.079 PITCH,CRIMP TERMINAL,LATCH ROHS COMPLIANT: YES

Part	Cable Termination	Color	Fastening Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Mounting Type	Number of Positions	Contact Finish	Wire Gauge	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Number of Rows [custom]	Wire Type
Harwin Inc. M80-8131205	Crimp	Black	Latch Holder	Header	0.25 Ám	10 Áin	Male Pin	Free Hanging (In-Line)	12	Gold	22 AWG	2 mm	0.079 in	0.079 in	2 mm	2	Discrete
Harwin Inc. M80-8130605	Crimp	Black	Latch Holder	Header	0.25 Ám	10 Áin	Male Pin	Free Hanging (In-Line)	6	Gold	22 AWG	2 mm	0.079 in	0.079 in	2 mm	2	Discrete
Harwin Inc. M80-8130405	Crimp	Black	Latch Holder	Header	0.25 Ám	10 Áin	Male Pin	Free Hanging (In-Line)	4	Gold	22 AWG	2 mm	0.079 in	0.079 in	2 mm	2	Discrete

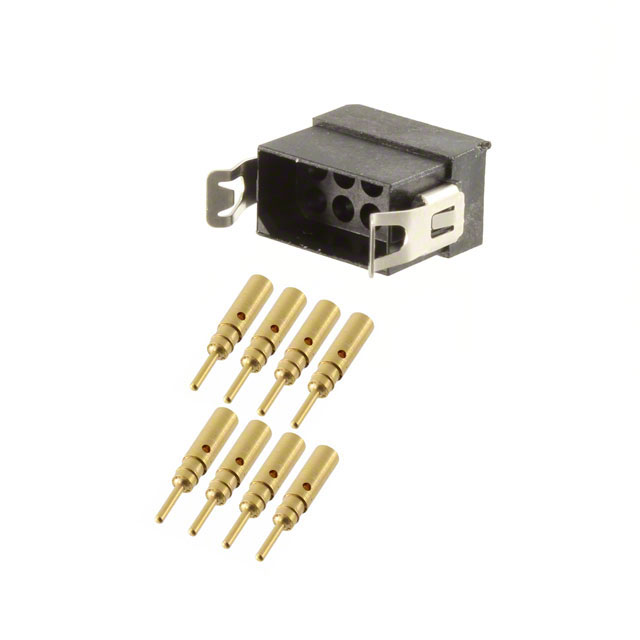

Harwin Inc. M80-8130805	Crimp	Black	Latch Holder	Header	0.25 Ám	10 Áin	Male Pin	Free Hanging (In-Line)	8	Gold	22 AWG	2 mm	0.079 in	0.079 in	2 mm	2	Discrete
Harwin Inc. M80-8131005	Crimp	Black	Latch Holder	Header	0.25 Ám	10 Áin	Male Pin	Free Hanging (In-Line)	10	Gold	22 AWG	2 mm	0.079 in	0.079 in	2 mm	2	Discrete
