RF55-30 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMB TYPE: VERTICAL, S
| Part | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Fastening Type | Connector Type | Number of Ports | Connector Style | Shield Termination | Features | Mounting Type | Frequency - Max [Max] | Contact Termination | Center Contact Material | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

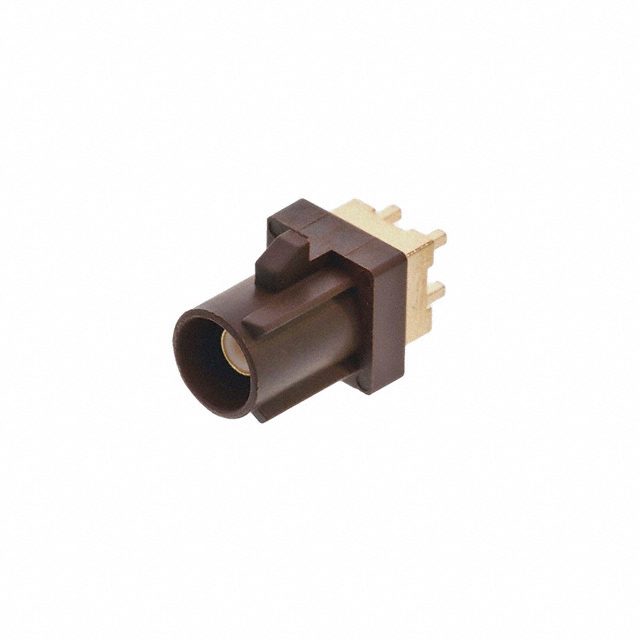

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Locking Ramp | Plug Male Pin | 1 | Fakra SMB | Solder | Code F | Through Hole | 4 GHz | Solder | Brass | 50 Ohms | Brown |

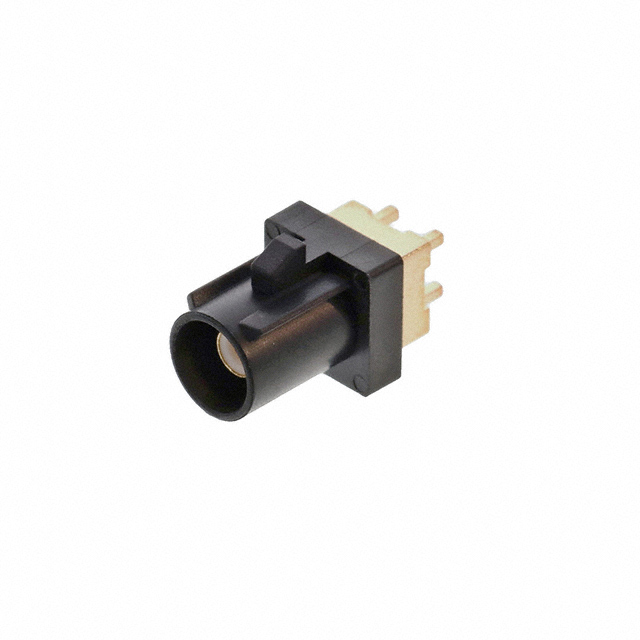

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Locking Ramp | Plug Male Pin | 1 | Fakra SMB | Solder | Code A | Through Hole | 4 GHz | Solder | Brass | 50 Ohms | Black |

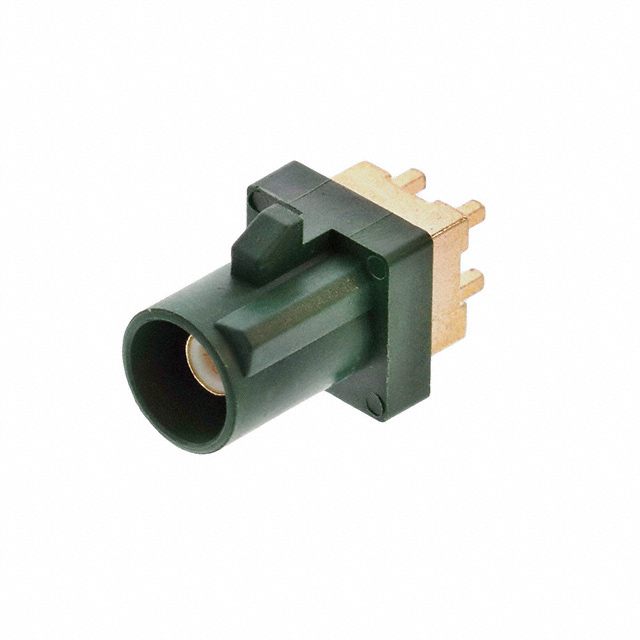

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Locking Ramp | Plug Male Pin | 1 | Fakra SMB | Solder | Code E | Through Hole | 4 GHz | Solder | Brass | 50 Ohms | Green |

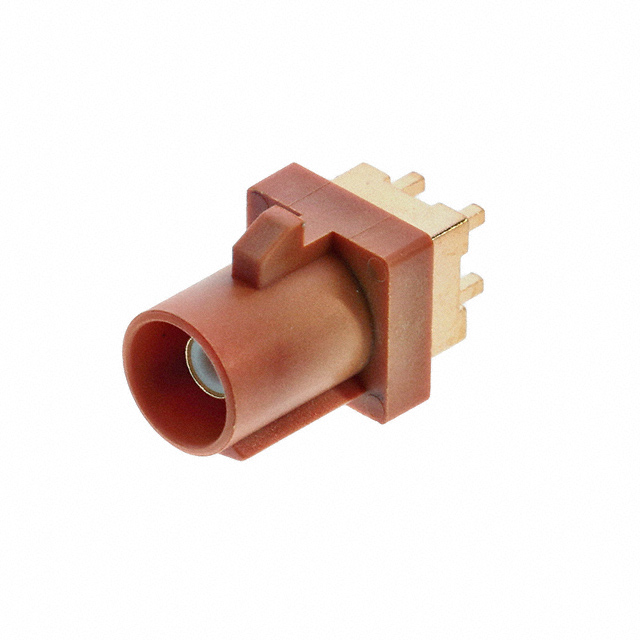

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Locking Ramp | Plug Male Pin | 1 | Fakra SMB | Solder | Code M | Through Hole | 4 GHz | Solder | Brass | 50 Ohms | Orange Pastel |

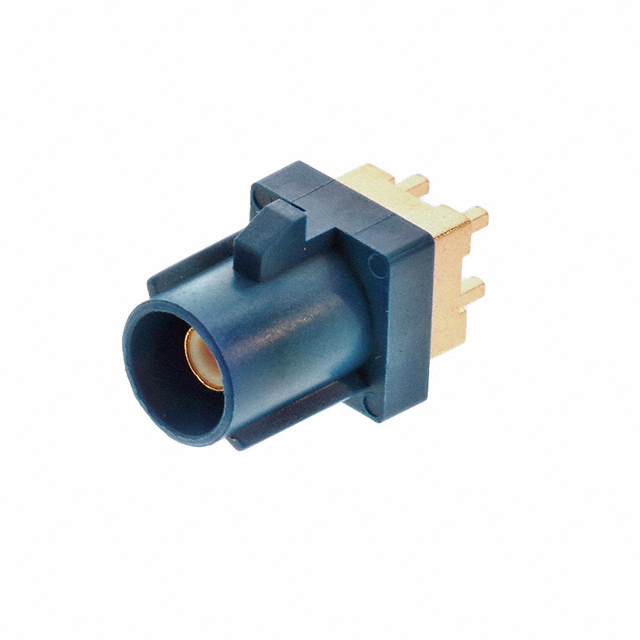

 Adam Tech | Brass | Gold | Gold | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Locking Ramp | Plug Male Pin | 1 | Fakra SMB | Solder | Code C | Through Hole | 4 GHz | Solder | Brass | 50 Ohms | Blue |
